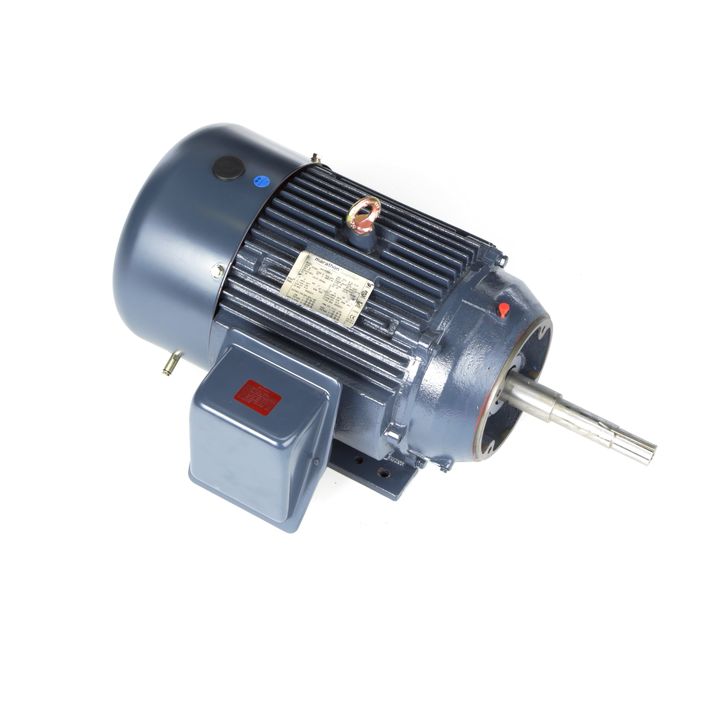

Marathon Electric GT3532A, 30 Hp, 1200 Rpm, 326JP FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 326TTFCD6095.

GT3532A, 30 Hp, 1200 Rpm, 326JP FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 326TTFCD6095.

Engineering Data

Output HP:30 Hp
Output KW:22.4 kW
Frequency:60 Hz
Voltage:575 V
Current:30.5 A
Speed:1185 rpm
Service Factor:1.15
Phase:3
Efficiency:93 %
Power Factor:79
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:326JP
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6312
Opp Drive End Bearing Size:6212
UL:Listed
CSA:Y
CE:YIP Code:55
Hazardous Location:DIVISION 2 T2B
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:.268 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:JP
Overall Length:35.42 in
Frame Length:14.56 in
Shaft Diameter:1.375 in
Shaft Extension:10.98 in
Assembly/Box Mounting:F1/F2 CAPABLE
