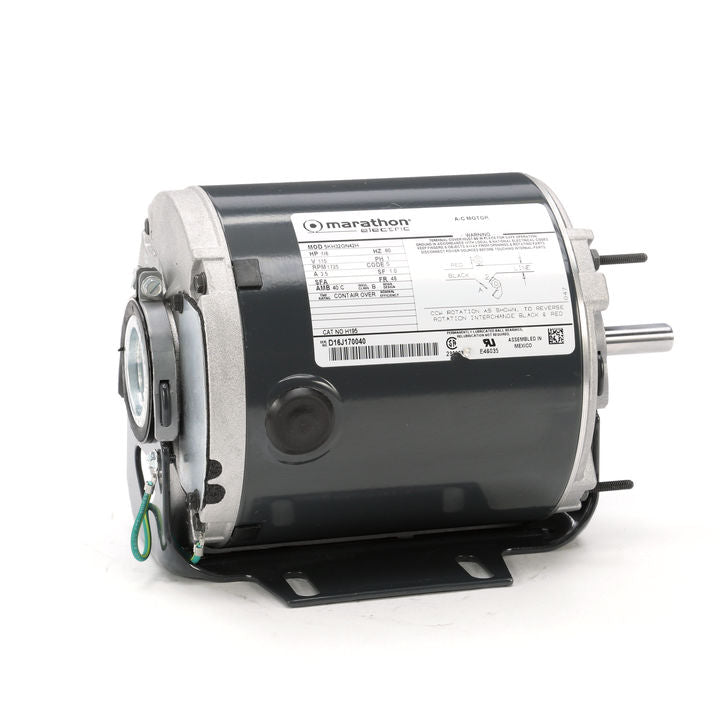

Marathon Electric H134, 1/4 Hp, 1800 Rpm, 48 FR, 115 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, No Overload, 5KH32FN3122

Marathon Electric H134, 1/4 Hp, 1800 Rpm, 48 FR, 115 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, No Overload, 5KH32FN3122

$709.88
$709.88
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$709.88 $674.39
Sale

H134, 1/4 Hp, 1800 Rpm, 48 FR, 115 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, No Overload, 5KH32FN3122

Engineering Data

Output HP : 1/4 HP
Output KW : 0.19 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 5.1 A
Speed : 1725 RPM
Service Factor : 1
Phase : 1
Efficiency : 52.8 %
Duty : Continous Air Over
Insulation Class : B
KVA Code : R
Frame : 48
Enclosure : Totally Enclosed Air Over
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Split Phase
Starting Method : SM
Poles : 4
Rotation : Counterclockwise/Clockwise
Mounting : Resilient Base
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 8.94 in
Frame Length : 5.16 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
