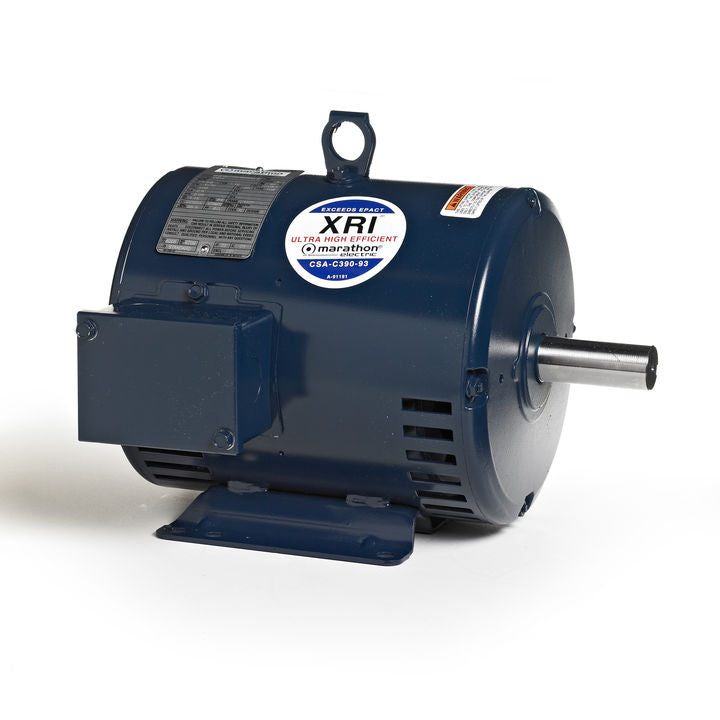

Marathon Electric H185B, 3 Hp, 900 Rpm, 215T FR, 230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No Over Load, 215TTDW14110.

**This motor is a Build to Order motor, Please call for delivery**
H185B, 3 Hp, 900 Rpm, 215T FR, 230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No Over Load, 215TTDW14110.

Engineering Data

Output HP : 3 HP
Output KW : 2.2 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 10.0/5.0 A
Speed : 875 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 87.5 %
Duty : Continuous
Insulation Class : B
Design Code : B
KVA Code : H
Frame : 215T
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6307
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y CE : Y IP Code : 12
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 8
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 21.60 in
Frame Length : 15.53 in
Shaft Diameter : 1.375 in
Shaft Extension : 3.47 in
Assembly/Box Mounting : F1 ONLY
UPC : 722856051653
Weight : 166.00 LB
