Industrial Motors

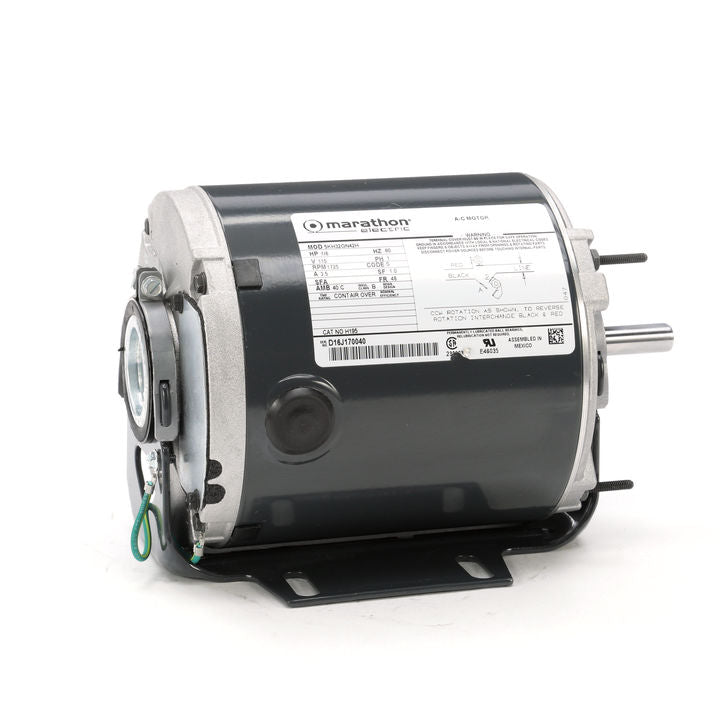

Marathon Electric H195, 1/6 HP, 1800 Rpm, 48 FR, 115 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, No Overload, 5KH32GN42

Marathon Electric H195, 1/6 HP, 1800 Rpm, 48 FR, 115 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, No Overload, 5KH32GN42

$509.00
$509.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$509.00 $483.55
Sale

H195, 1/6 HP, 1800 Rpm, 48 FR, 115 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, No Overload, 5KH32GN42

Engineering Data

60 Hertz
HP 1/6
Voltage 115
kW N/A
FL Amps 3.5
RPM 1725
FL Eff 0 %
SF 1.0

Phase 1
Insulation Class B
Frame 48
Duty Continuous
Enclosure TENV
Ambient 40
Mounting RB
NEMA Design
Orientation Horizontal or Vertical
Starting Type Switch and Mech
Assembly N/A
KVA Code S
Drive End Bearing BALL
IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 17MM
Rotation Counterclockwise
Opposite End Bearing Size 17MM
Hazardous Location N/R
Weight 13 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection None
