Industrial Motors

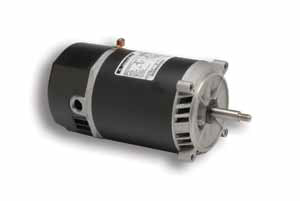

Marathon Electric H685, 1/3 Hp, 3600 Rpm, 56J FR, 115 V, 1 PH, Dripproof, Jet Pump, Two-Compartment,5KH39EN2887X.

Marathon Electric H685, 1/3 Hp, 3600 Rpm, 56J FR, 115 V, 1 PH, Dripproof, Jet Pump, Two-Compartment,5KH39EN2887X.

$515.00
$515.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$515.00 $489.25
Sale

H685, 1/3 Hp, 3600 Rpm, 56J FR, 115 V, 1 PH, Dripproof, Jet Pump, Two-Compartment,5KH39EN2887X.

Engineering Data

Output HP :1/3 HP
Output KW :0.25 kW
Frequency :60 Hz
Voltage :115 V
Current :6.2 A
Speed :3450 RPM
Service Factor :1.75
Phase :1
Efficiency :54.5 %
Duty :Continous
Insulation Class :B
KVA Code :S
Frame :56J
Enclosure :Drip Proof
Overload Protector :AUTO
Ambient Temperature :50 °C
Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :Yes
CE :N
Technical Specifications
Electrical Type :Split Phase
Starting Method :SM
Poles :2
Rotation :Clockwise
Mounting :Rigid Base
Motor Orientation :ANY
Drive End Bearing :LOCKED
Opp Drive End Bearing :BALL
Frame Material :Rolled Steel
Overall Length :11.54 in
Frame Length :4.43 in
Shaft Diameter :0.63 in
Shaft Extension :2.39 in
UPC :722856032065

View full details

Attachments
