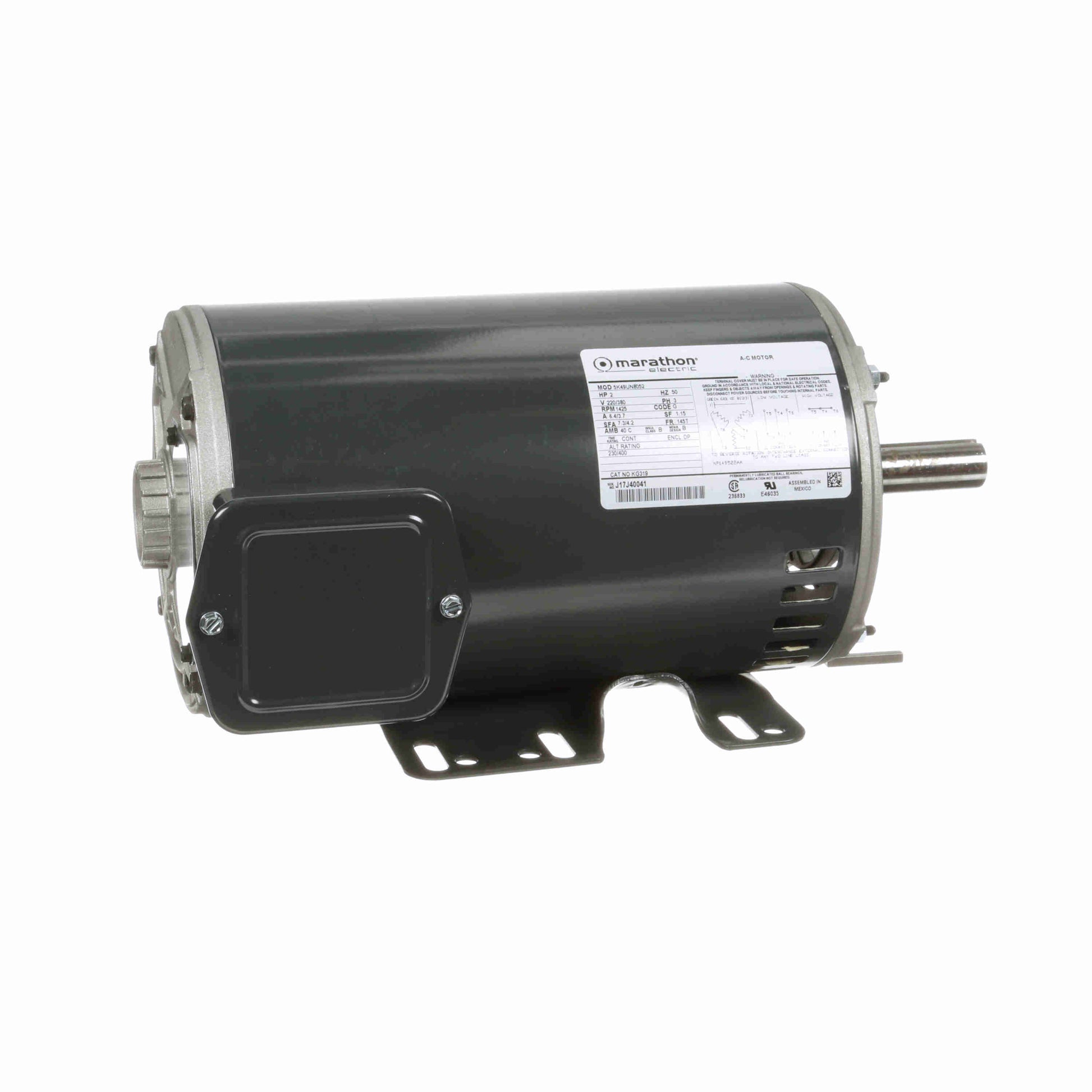

Marathon Electric H952, 2 Hp, 1500 Rpm, 145T FR, 190-208/380-416 V, 3 PH, 50 Hertz, Dripproof, Rigid Base, 145TTDR5647.

H952, 2 Hp, 1500 Rpm, 145T FR, 190-208/380-416 V, 3 PH, 50 Hertz, Dripproof, Rigid Base, 145TTDR5647.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:50 Hz
Voltage:190-200-208/380-400-415 V
Current:7.2-7.2-7.3/3.6- A
Speed:1425 rpm
Service Factor:1.15
Phase:3
Efficiency:82.5 %
Power Factor:79
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:L
Frame:145T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Part Wdg Start Low Volt Only & Wye Start Delta Run
Poles:4
Rotation:Reversible
Resistance Main:7.88 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:12.99 in
Frame Length:9.06 in
Shaft Diameter:0.875 in
Shaft Extension:2.28 in
Assembly/Box Mounting:F1 ONLY
