Industrial Motors

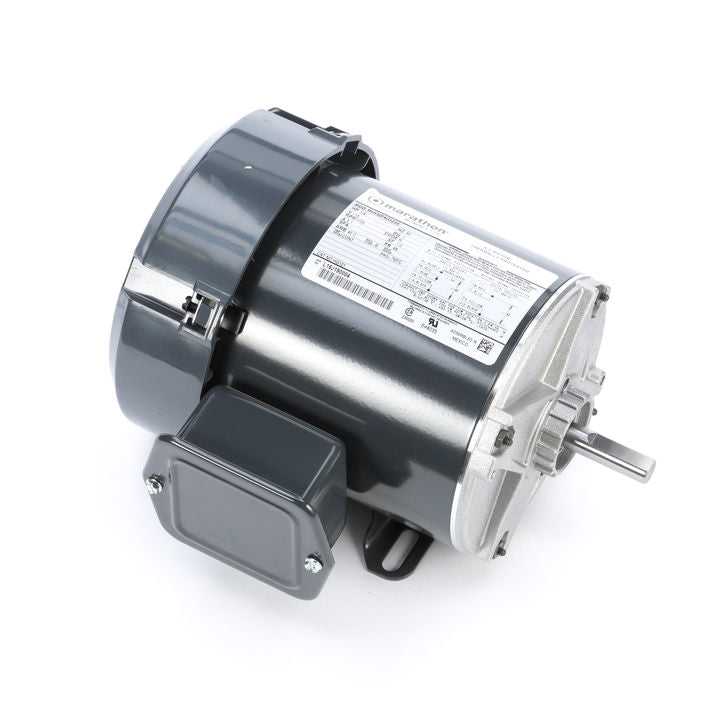

Marathon Electric HG121, 1/4 Hp, 1800 Rpm, 48 FR, 115 V, 1 PH, TEFC, Rigid Base, General Purpose, Auto Overload, 5KH32FN3123X.

Marathon Electric HG121, 1/4 Hp, 1800 Rpm, 48 FR, 115 V, 1 PH, TEFC, Rigid Base, General Purpose, Auto Overload, 5KH32FN3123X.

$703.00
$703.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$703.00 $667.85
Sale

HG121, 1/4 Hp, 1800 Rpm, 48 FR, 115 V, 1 PH, TEFC, Rigid Base, General Purpose, Auto Overload, 5KH32FN3123X.

Engineering Data

Output HP:1/4 Hp
Output KW:0.19 kW
Frequency:60 Hz
Voltage:115 V
Current:5.1 A
Speed:1725 rpm
Service Factor:1
Phase:1
Efficiency:55.7 %
Power Factor:0
Duty:Continuous
Insulation Class:B
KVA Code:R
Frame:48
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:AUTO
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Yes
CE:N
Technical Specifications
Electrical Type:Split Phase
Starting Method:SM
Poles:4
Rotation:Counterclockwise/Clockwise
Mounting:Rigid Base
Motor Orientation:ANY
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Overall Length:9.92 in
Frame Length:5.16 in
Shaft Diameter:0.5 in
Shaft Extension:1.5 in
