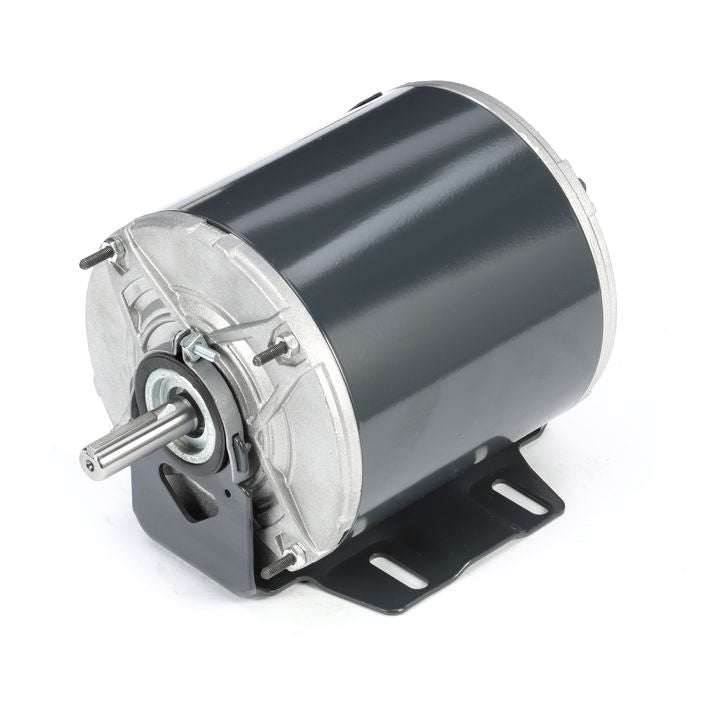

Marathon Electric HG143, 1/2 Hp, 1800 Rpm, 56 FR, 115 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, No Overload 5KH42GN0337.

Marathon Electric HG143, 1/2 Hp, 1800 Rpm, 56 FR, 115 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, No Overload 5KH42GN0337.

$919.00
$919.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$919.00 $873.05
Sale

HG143, 1/2 Hp, 1800 Rpm, 56 FR, 115 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, No Overload 5KH42GN0337.

Engineering Data

Output HP : 1/2 HP
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 8 A
Speed : 1725 RPM
Service Factor : 1.25
Phase : 1
Efficiency : 63.6 %
Duty : Continous
Insulation Class : B
KVA Code : S
Frame : 56
Enclosure : Totally Enclosed Non Ventilated
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Split Phase
Starting Method : SM
Poles : 4
Rotation : Counterclockwise/Clockwise
Mounting : Resilient Base
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 10.05 in
Frame Length : 5.72 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
