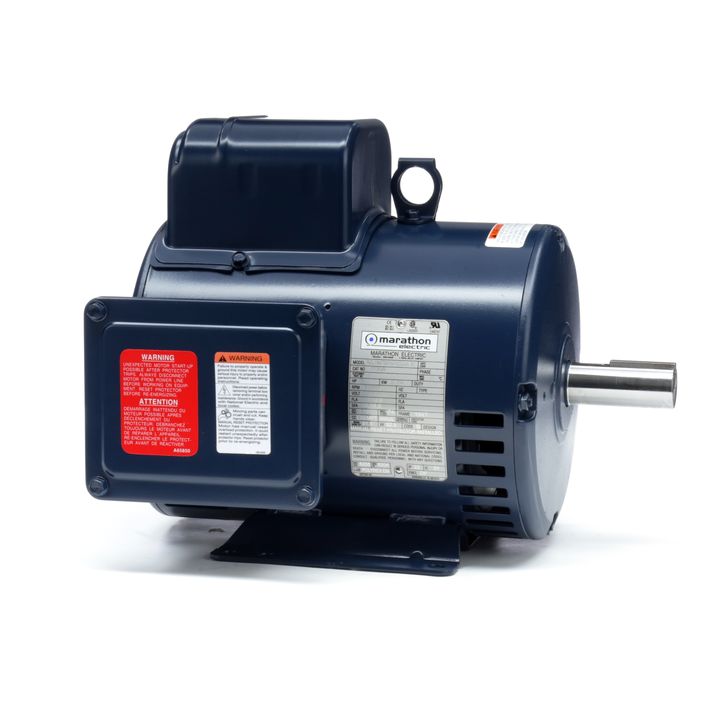

Marathon Electric I131A, 5 Hp, 1800 Rpm, 184T FR, 208-230 Vac, 1 PH, DP, Rigid Base, Air Compressor, 184TBDW7632

I131A, 5 Hp, 1800 Rpm, 184T FR, 208-230 Vac, 1 PH, DP, Rigid Base, Air Compressor, 184TBDW7632

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:208-230 V
Current:22.0-20.0 A
Speed:1750 rpm
Service Factor:1.15
Phase:1
Efficiency:84 %
Power Factor:98
Duty:Continuous
Insulation Class:F
Design Code:NO DESIGN CODE
KVA Code:G
Frame:184T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:NIP Code:22
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Clockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:15.19 in
Frame Length:11.00 in
Shaft Diameter:1.125 in
Shaft Extension:2.81 in
Assembly/Box Mounting:F1 ONLY
