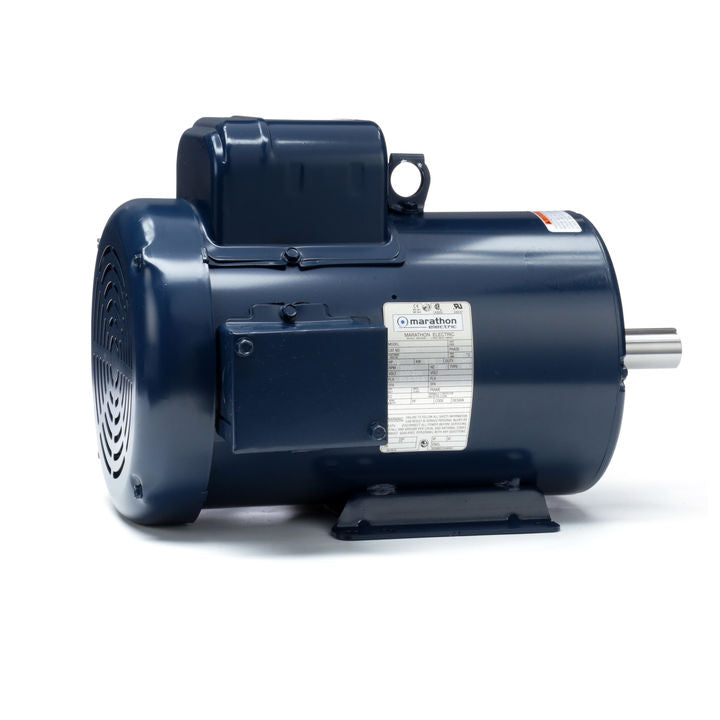

Marathon Electric I223A, 5 Hp, 3600 Rpm, 184T FR, 208-230 Vac, 1 PH, TEFC, Rigid Base, No Over Load, General Purpose Motor, 184TBFW7701

I223A, 5 Hp, 3600 Rpm, 184T FR, 208-230 Vac, 1 PH, TEFC, Rigid Base, No Over Load, General Purpose Motor, 184TBFW7701

Engineering Data

Output HP : 5 HP
Output KW : 3.7 kW
Frequency : 60 Hz
Voltage : 208-230 V
Current : 22.5-19.8 A
Speed : 3530 RPM
Service Factor : 1
Phase : 1
Efficiency : 82.5 %
Duty : Continous
Insulation Class : F
Design Code : L
KVA Code : H
Frame : 184T
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Capacitor Start Capacitor Run
Starting Method : Across The Line
Poles : 2
Rotation : Selective Counterclockwise
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 16.46 in
Frame Length : 11.50 in
Shaft Diameter : 1.125 in
Shaft Extension : 2.81 in
Assembly/Box Mounting : F1 Only
