Industrial Motors

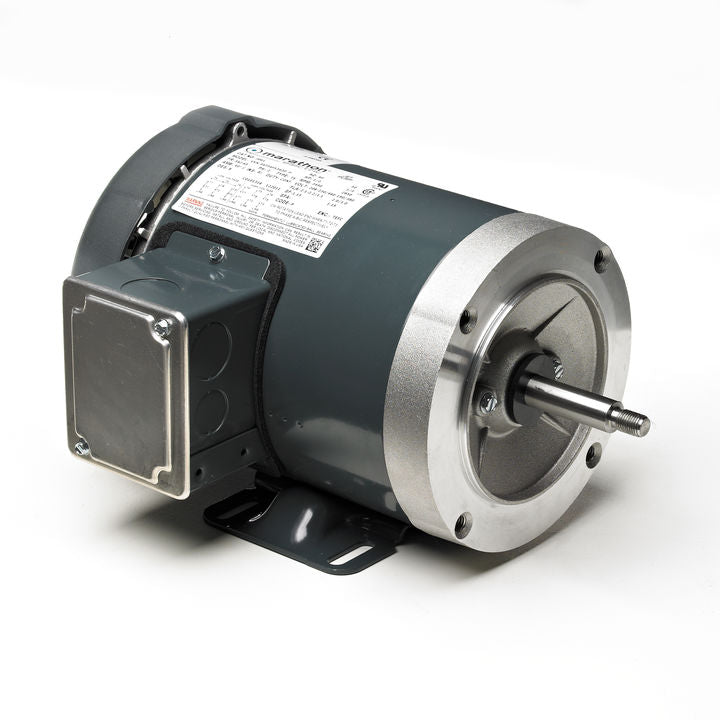

Marathon Electric J062, 3/4 Hp, 3600 Rpm, 56J FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Removable Base, Centrifugal Pump (Jet Pump), 056T34F5343.

Marathon Electric J062, 3/4 Hp, 3600 Rpm, 56J FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Removable Base, Centrifugal Pump (Jet Pump), 056T34F5343.

$820.00
$820.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$820.00 $779.00
Sale

J062, 3/4 Hp, 3600 Rpm, 56J FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Removable Base, Centrifugal Pump (Jet Pump), 056T34F5343.

Engineering Data

60 Hertz
HP 3/4
Voltage 208-230/460
kW .56
FL Amps 3-3.2/1.6
RPM 3600
FL Eff 74 % SF 1.15

50 Hertz
HP 1/2
Voltage 190/380
kW .37 FL Amps 3/1.5
RPM 3000
FL Eff 67 %
SF 1.15

Phase 3
Insulation Class B
Frame 56J
Duty CONTINUOUS
Enclosure TEFC
Ambient 40
Mounting C-Face Rigid NEMA
Design B
Orientation HORIZONTAL
Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA
Code N
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size NONE
Opposite End Bearing Size NONE
Weight 23.4 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection
