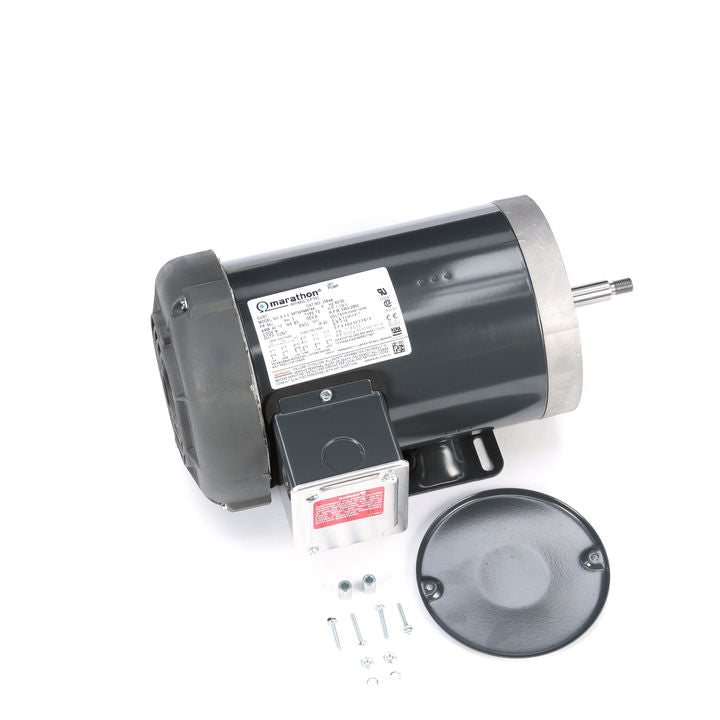

Marathon Electric J064A, 1 1/2 Hp, 3600 Rpm, 56J FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Removable Base, Centrifugal Pump (Jet Pump) 56T34F99018.

J064A, 1 1/2 Hp, 3600 Rpm, 56J FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Removable Base, Centrifugal Pump (Jet Pump) 56T34F99018.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:208-230/460 V
Current:4.2-4.0/2.0 A
Speed:3450 rpm
Service Factor:1.15
Phase:3
Efficiency:84 %
Power Factor:83.5
Duty:Continuous
Insulation Class:B
Design Code:B
KVA Code:M
Frame:56J
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Resistance Main:9.27 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:J
Overall Length:13.82 in
Frame Length:8.06 in
Shaft Diameter:0.625 in
