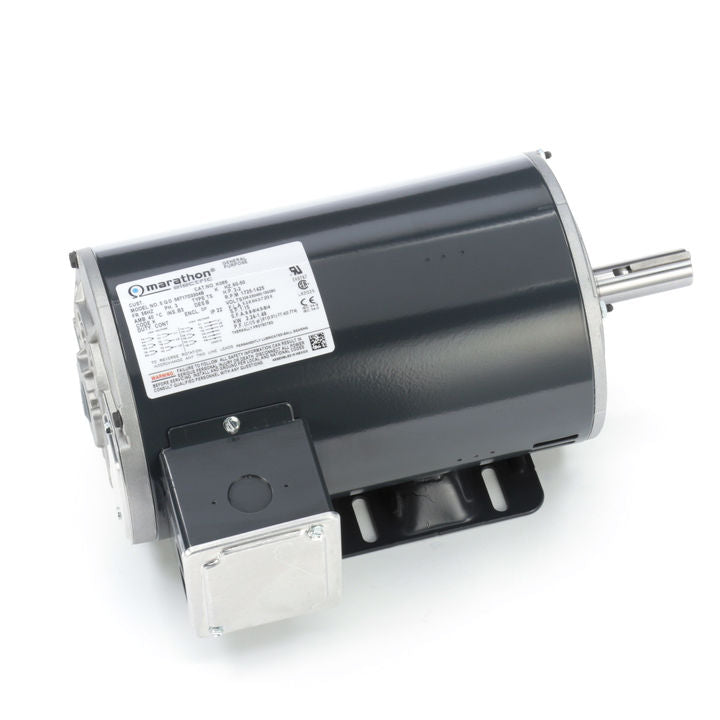

Marathon Electric K066, 3 Hp, 1800 Rpm, 56HZ FR, 208-230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, Auto Over Load, 056T17D3304.

K066, 3 Hp, 1800 Rpm, 56HZ FR, 208-230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, Auto Over Load, 056T17D3304.

Engineering Data

Output HP : 3 HP
Output KW : 2.2 kW
Frequency : 60 HzV
Voltage : 208-230/460 V
Current : 9.2-8.6/4.3 A
Speed : 1725 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 84 %
Duty : Continous
Insulation Class : B
Design Code : B
KVA Code : K
Frame : 56HZ
Enclosure : Drip Proof
Overload Protector : Automatic
Ambient Temperature : 40 °C
Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : NEMA 145T
Overall Length : 13.49 in
Frame Length : 9.56 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.25 in
Assembly/Box Mounting : F1 Only
