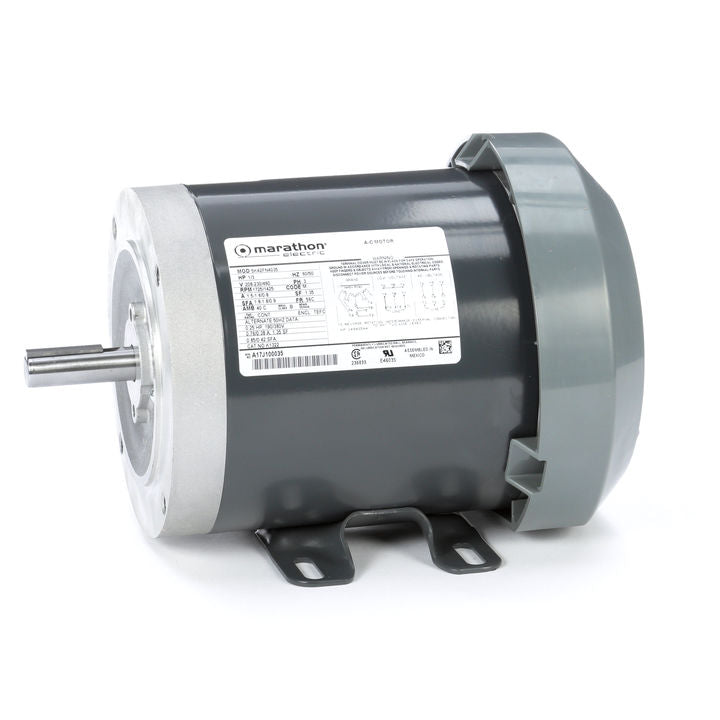

Marathon Electric K1322, 1/3 Hp, 1800 Rpm, 56C FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 5K42FN4035

K1322, 1/3 Hp, 1800 Rpm, 56C FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 5K42FN4035.

Engineering Data

Output HP : 1/3 HP
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 208-230/460 V
Current : 1.5-1.6,0.8 A
Speed : 1725 RPM
Service Factor : 1.35
Phase : 3
Efficiency : 69.2 %
Duty : Continous
Insulation Class : B
KVA Code : M
Frame : 56C
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Three Phase
Starting Method : N/R
Poles : 4
Rotation : Counterclockwise/Clockwise
Mounting : Rigid Base
Motor Orientation : ANY
Drive End Bearing : LOCKED
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 11.01 in
Frame Length : 5.72 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856015730
