Industrial Motors

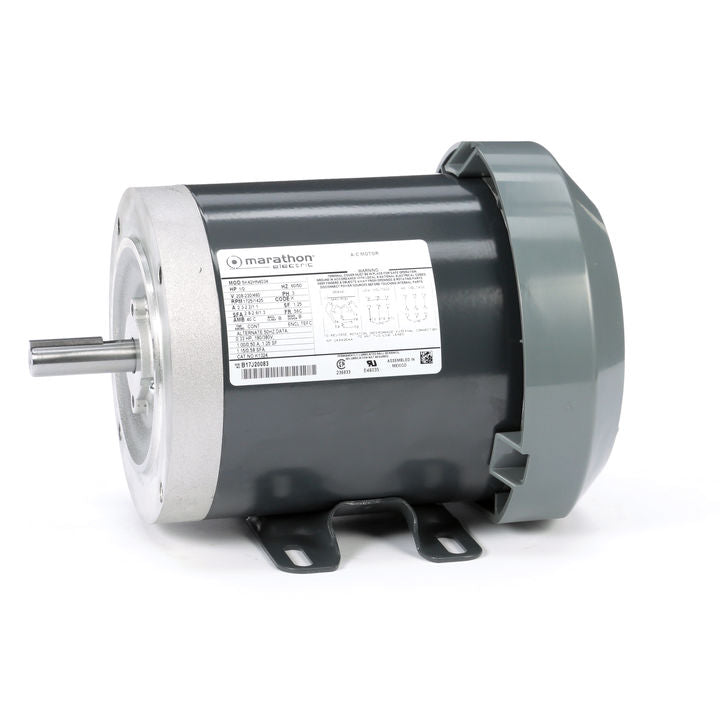

Marathon Electric K1324, 1/2 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 5K42HN4034.

Marathon Electric K1324, 1/2 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 5K42HN4034.

$814.00
$814.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$814.00 $773.30
Sale

K1324, 1/2 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 5K42HN4034.

Nameplate Specifications

Output HP 0.5 Hp
Output KW  0.37 kW
Frequency  60 Hz
Voltage  208-230/460 V
Current  2.3-2.2,1.1 A
Speed  1725 rpm
Service Factor 1.25
Phases  3
Efficiency  77 %
Duty  CONT
Insulation Class  B
Design Code  B
KVA Code  K
Frame  56C
Enclosure  TEFC
Overload Protector  N/R
Ambient Temperature  40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Yes
CE  N

Technical Specifications

Electrical Type  Three Phase
Starting Method  N/R
Poles  4
Rotation  CCW/CW
Mounting  WB
Motor Orientation  ANY
Drive End Bearing  LOCKED
Opp Drive End Bearing  BALL
Frame Material  Rolled Steel
Overall Length  11.01 in
Frame Length  5.72 in
Shaft Diameter  0.63 in
Shaft Extension  1.88 in
