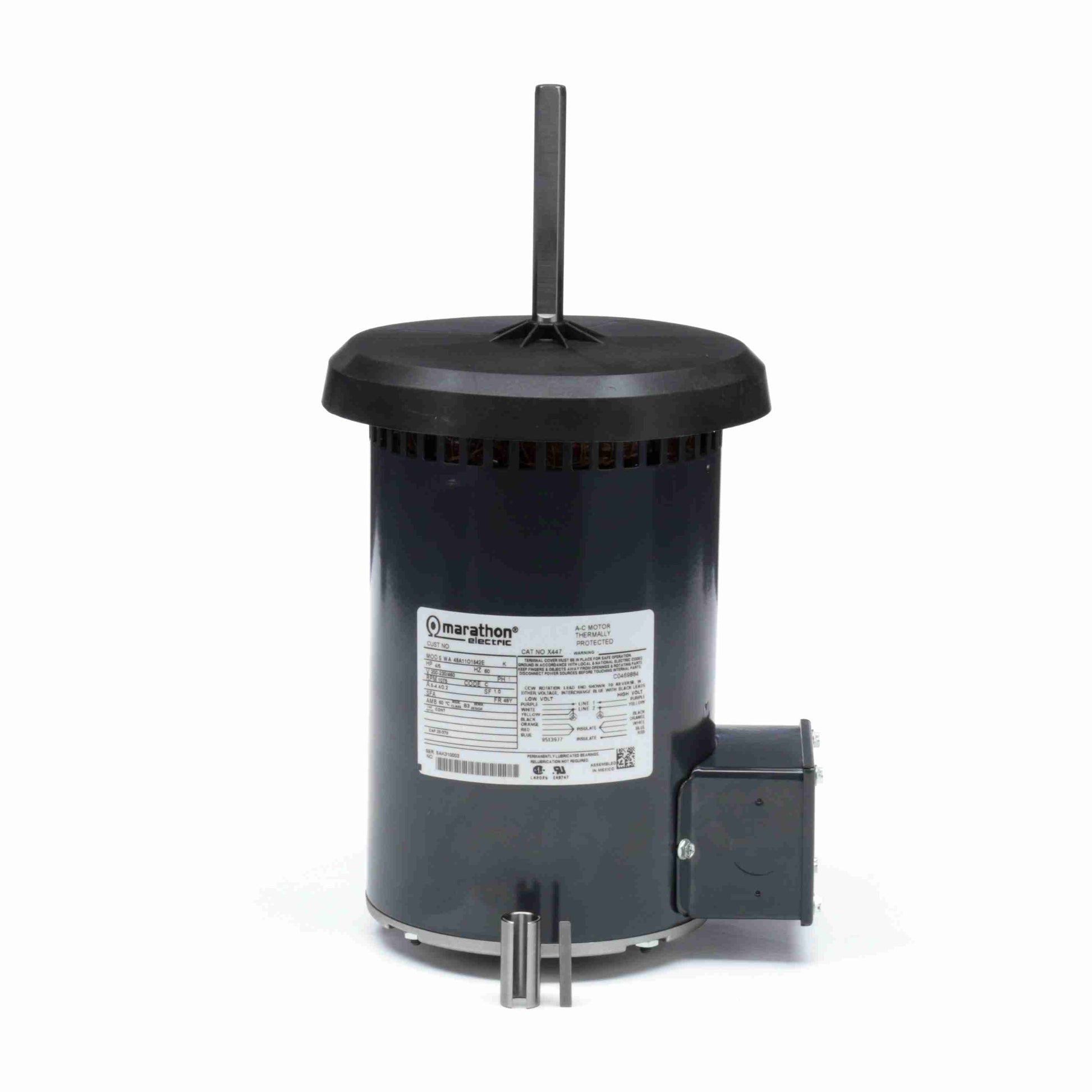

Marathon Electric K1402, 1 Hp, 1140 Rpm, 48Y FR, 200-230/460 Vac, 3 PH, Shaft Up w/Fan Canopy/Rainshield, Condenser Fan/Heat Pump, 5K39SNB505S.

K1402, 1 Hp, 1140 Rpm, 48Y FR, 200-230/460 Vac, 3 PH, Shaft Up w/Fan Canopy/Rainshield, Condenser Fan/Heat Pump, 5K39SNB505S.

Engineering Data

Output HP : 1 Hp
Output KW : 0.75 kW
Frequency : 60 Hz
Voltage : 200-230/460 V
Current : 4.4-4.0,2.0 A
Speed : 1140 rpm
Service Factor : 1
Phase : 3
Efficiency : 70 %
Duty : Continous
Insulation Class : B KVA
Code : L
Frame : 48Z
Enclosure : Open Enclosed Overload
Protector : AUTO
Ambient Temperature : 65 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized CSA : Yes
CE : N
Technical Specifications
Electrical Type : Three Phase
Starting Method : N/R
Poles : 6
Rotation : Clockwise/Counterclockwise
Mounting : Round
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 16.05 in
Frame Length : 8.5 in
Shaft Diameter : 0.63 in
Shaft Extension : 5.75 in
Thru-bolts Extension : 0 in
