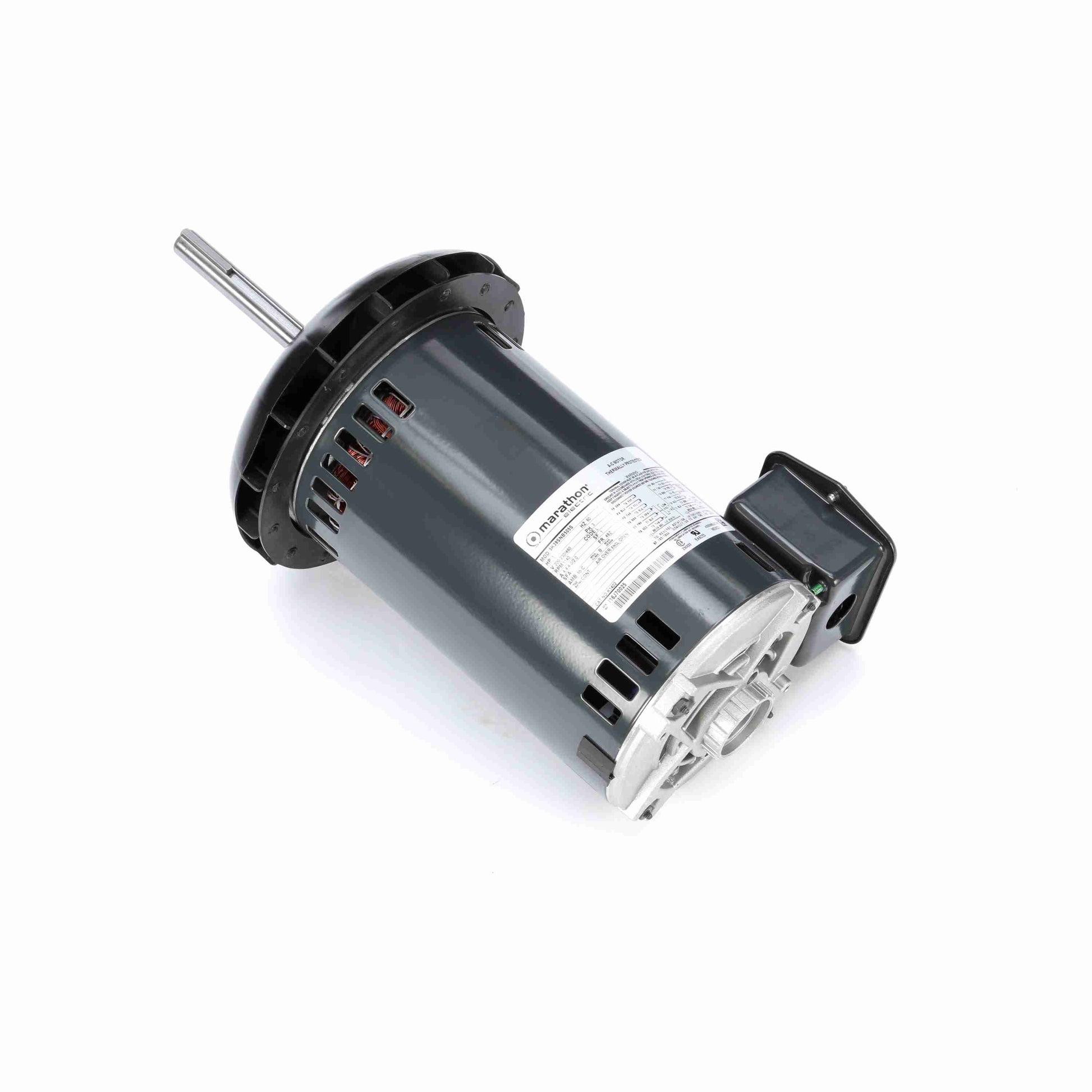

Marathon Electric K1403, 1/2 Hp, 1140 Rpm, 48Y FR, 200-230/460 V, 3 PH, Shaft Up w/Fan Canopy/Rainshield, Condenser Fan/Heat Pump, 5K36PN345S.

K1403, 1/2 Hp, 1140 Rpm, 48Y FR, 200-230/460 V, 3 PH, Shaft Up w/Fan Canopy/Rainshield, Condenser Fan/Heat Pump, 5K36PN345S.

General Specifications

Output HP : 0.5 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 200-230/460
VCurrent : 2.2-2.6,1.3 A
Speed : 1140 rpm
Service Factor : 1
Phase : 3
Efficiency : 63 %
Duty : CONT
Insulation Class : B
Design Code : B
KVA Code : K
Frame : 48Z
Enclosure : OPEN
Overload Protector : AUTO
Ambient Temperature : 65 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Three Phase
Starting Method : N/R
Poles : 6
Rotation : CCW/CW
Mounting : RD
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 12.81 in
Frame Length : 6.22 in
Shaft Diameter : 0.5 in
Shaft Extension : 4.7 in
Thru-bolts Extension : 0
UPC : 722856038296
Weight : 20.00 LB
