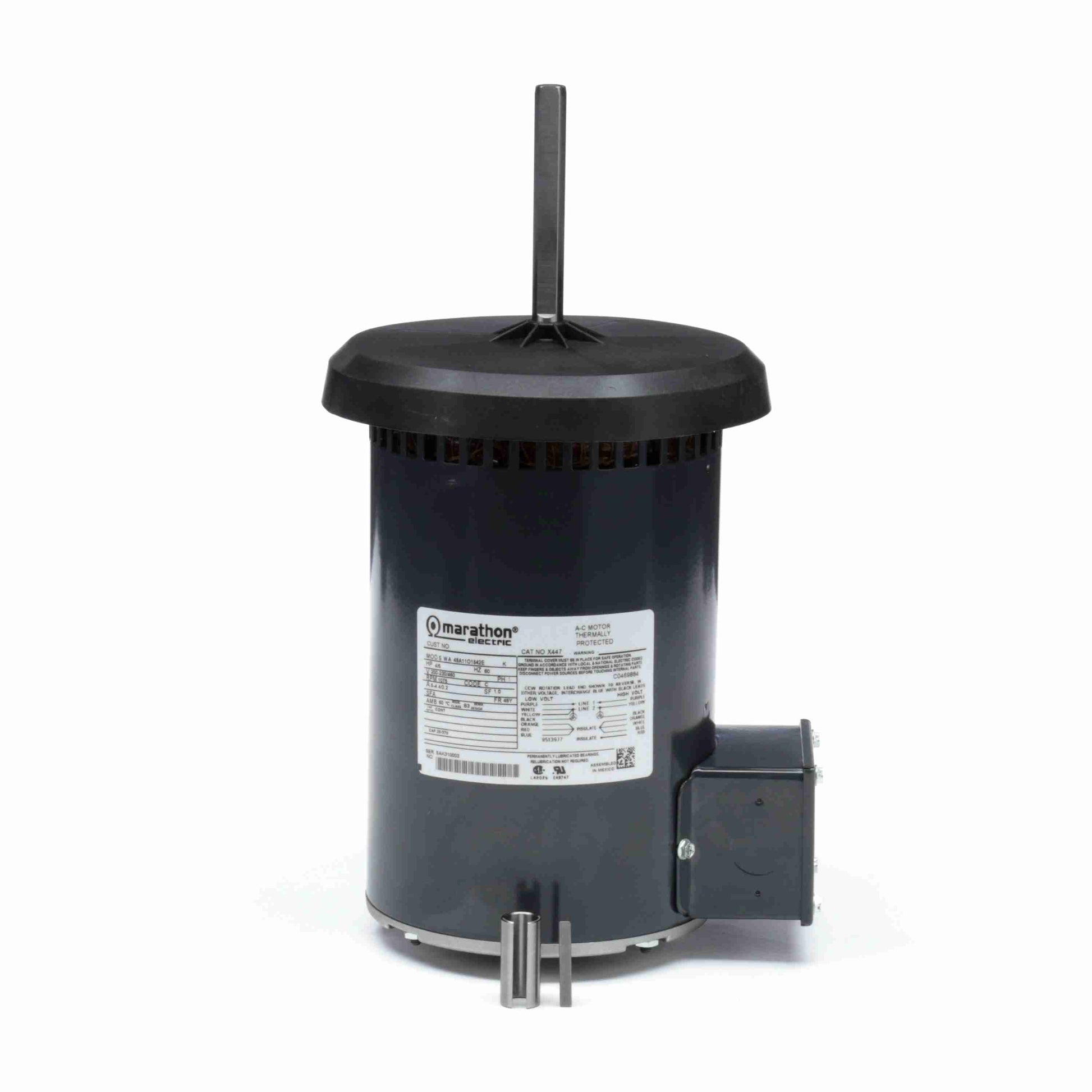

Marathon Electric K1404, 3/4 Hp, 1140 Rpm, 48Y FR, 200-230/460 Vac, 3 PH, Shaft Up w/Fan Canopy/Rainshield, Condenser Fan/Heat Pump, 5K38SN267S.

K1404, 3/4 Hp, 1140 Rpm, 48Y FR, 200-230/460 Vac, 3 PH, Shaft Up w/Fan Canopy/Rainshield, Condenser Fan/Heat Pump, 5K38SN267S.

Engineering Data

Output HP : 3/4 Hp
Output KW : 0.56 kW
Frequency : 60 Hz
Voltage : 200-230/460 V
Current : 3.3-3.8,1.9 A
Speed : 1140 rpm
Service Factor : 1
Phase : 3
Efficiency : 71.3 %
Duty : Continous Insulation
Class : B Design
Code : B KVA
Code : J
Frame : 48Z
Enclosure : Open Enclosed Overload
Protector : AUTO
Ambient Temperature : 65 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N IP Code : 10
Technical Specifications
Electrical Type : Three Phase
Starting Method : N/R
Poles : 6
Rotation : Counterclockwise/Clockwise
Mounting : Round
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 14.25 in
Frame Length : 7.22 in
Shaft Diameter : 0.63 in
Shaft Extension : 5.22 in
Thru-bolts Extension : 0 in
