Industrial Motors

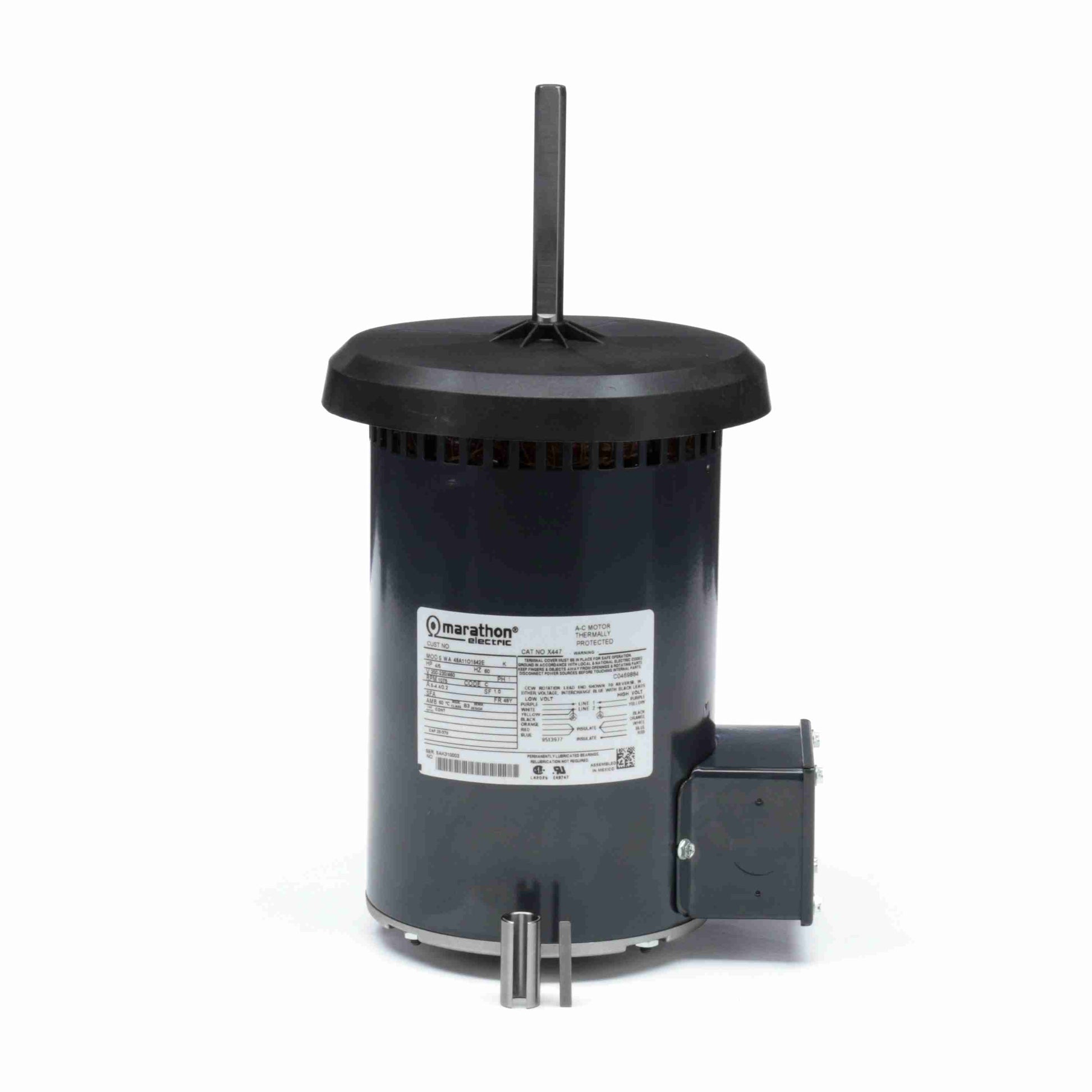

Marathon Electric K1405, 3/4 Hp, 1140 Rpm, 48Y FR, 575 Vac, 3 PH, Shaft Up w/Fan Canopy/Rainshield, Condenser Fan/Heat Pump, 5K39SNB765T.

Marathon Electric K1405, 3/4 Hp, 1140 Rpm, 48Y FR, 575 Vac, 3 PH, Shaft Up w/Fan Canopy/Rainshield, Condenser Fan/Heat Pump, 5K39SNB765T.

$1,317.00
$1,317.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,317.00 $1,251.15
Sale

K1405, 3/4 Hp, 1140 Rpm, 48Y FR, 575 Vac, 3 PH, Shaft Up w/Fan Canopy/Rainshield, Condenser Fan/Heat Pump, 5K39SNB765T.

Engineering Data

Output HP : 3/4 Hp
Output KW : 0.56 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 1.5 A
Speed : 1140 rpm
Service Factor : 1
Phase : 3
Efficiency : 70 %
Duty : Continous Insulation Class : B KVA
Code : H
Frame : 48Z
Enclosure : Open Enclosed Overload
Protector : AUTO
Ambient Temperature : 60 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Three Phase
Starting Method : N/R
Poles : 6
Rotation : Counterclockwise/Clockwise
Mounting : Round
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 15.5 in
Frame Length : 8.5 in
Shaft Diameter : 0.63 in
Shaft Extension : 5.26 in
Thru-bolts Extension : 0 in
