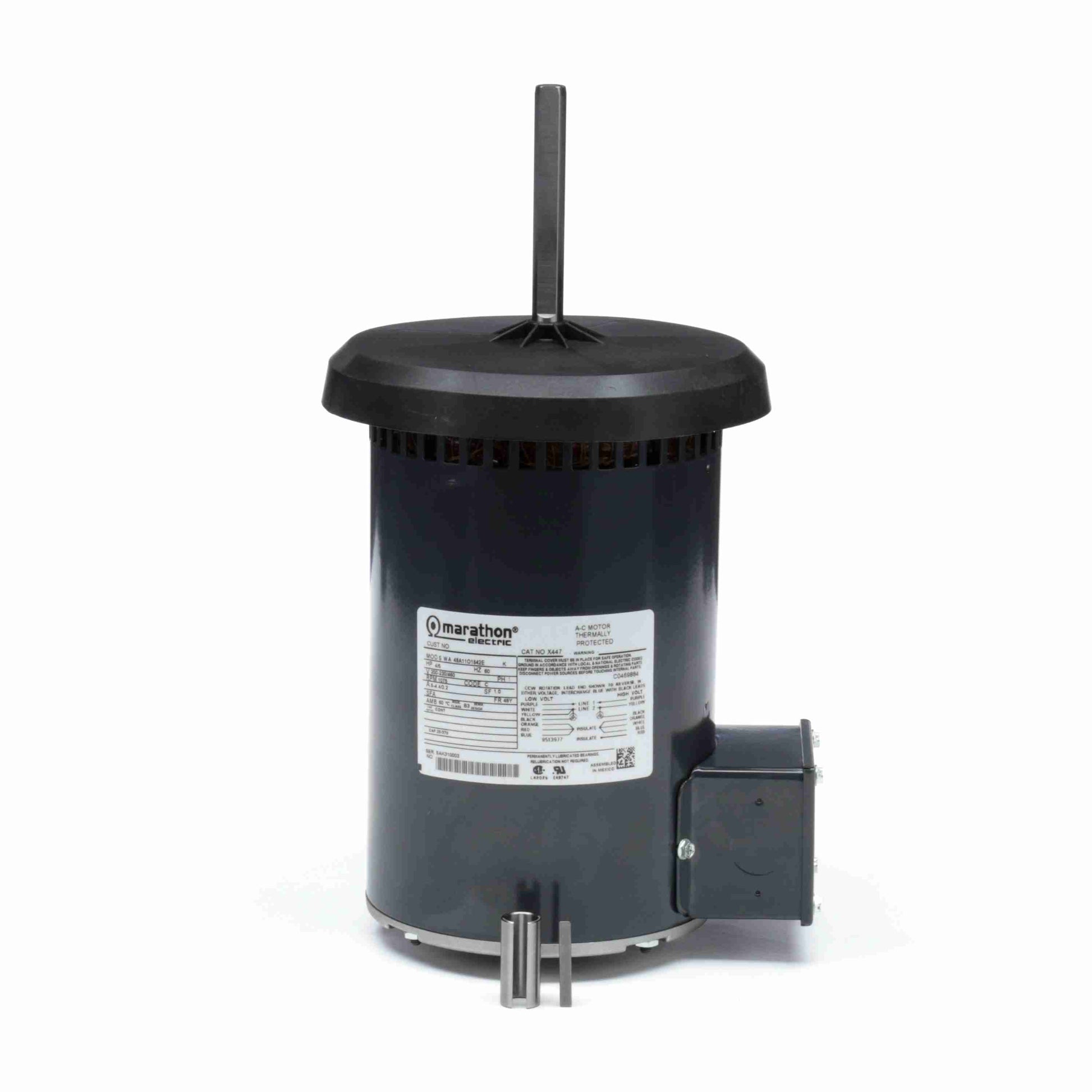

Marathon Electric K1407, 1 1/2 Hp, 1140 Rpm, 48Y FR, 200-230/460 Vac, 3 PH, Shaft Up w/Fan Canopy/Rainshield, Condenser Fan/Heat Pump, 5K39SNB587S.

K1407, 1 1/2 Hp, 1140 Rpm, 48Y FR, 200-230/460 Vac, 3 PH, Shaft Up w/Fan Canopy/Rainshield, Condenser Fan/Heat Pump, 5K39SNB587S.

Engineering Data

Output HP : 1.5 Hp
Output KW : 1.1 kW
Frequency : 60 Hz
Voltage : 200-230/460 V
Current : 6.0-5.8,2.9 A
Speed : 1120 rpm
Service Factor : 1
Phase : 3
Efficiency : 70 %
Duty : Continous
Insulation Class : B KVA
Code : F
Frame : 48Y
Enclosure : Open Enclosed Overload
Protector : AUTO
Ambient Temperature : 60 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N
Technical Specifications
Electrical Type : Three Phase
Starting Method : N/R
Poles : 6
Rotation : Counterclockwise/Clockwise
Mounting : Round
Motor Orientation : VSU
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 15.76 in
Frame Length : 8.5 in
Shaft Diameter : 0.63 in
Shaft Extension : 5.03 in
Thru-bolts Extension : 0 in
