Industrial Motors

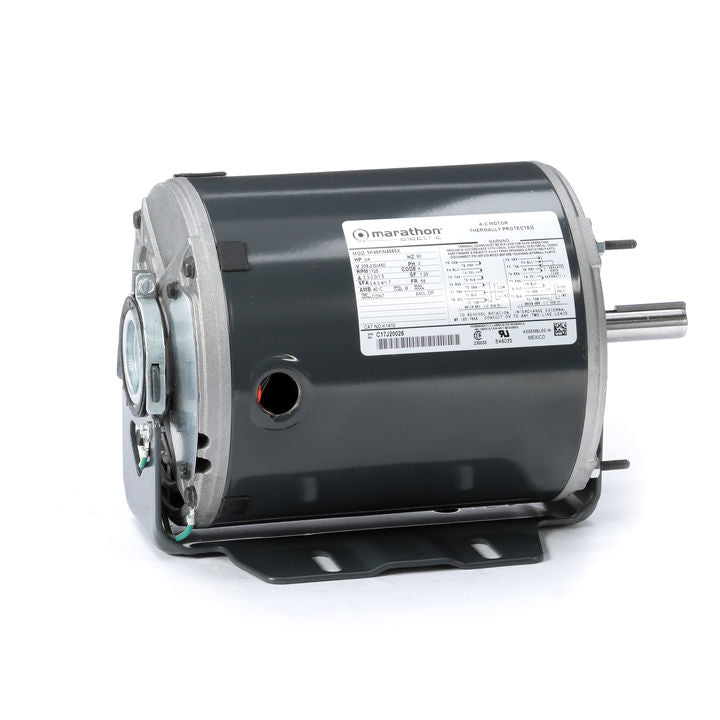

Marathon Electric K1410, 3/4 Hp, 1800 Rpm, 56 FR, 208-230/460, 3 PH, Dripproof, Resilient Base, Fan Blower Motor, Auto Over Load, 5K46KN4085X

Marathon Electric K1410, 3/4 Hp, 1800 Rpm, 56 FR, 208-230/460, 3 PH, Dripproof, Resilient Base, Fan Blower Motor, Auto Over Load, 5K46KN4085X

$922.00
$922.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$922.00 $875.90
Sale

K1410, 3/4 Hp, 1800 Rpm, 56 FR, 208-230/460, 3 PH, Dripproof, Resilient Base, Fan Blower Motor, Auto Over Load, 5K46KN4085X

Engineering Data

Nameplate Specifications

Output HP  0.75 Hp
Output KW  0.56 kW
Frequency  60 Hz
Voltage  208-230/460 V
Current  3.3-3.0,1.5 A
Speed  1725 rpm
Service Factor  1.25
Phases  3
Efficiency  74 %
Duty  CONT
Insulation Class  B
KVA Code  K
Frame  56
Enclosure  DP
Overload Protector  AUTO
Ambient Temperature  40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Yes
CE  N

Technical Specifications

Electrical Type  Three Phase
Starting Method  N/R
Poles  4
Rotation  CCW/CW
Mounting  RB
Motor Orientation  ANY
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  Rolled Steel
Overall Length  10.88 in
Frame Length  6.55 in
Shaft Diameter  0.63 in
Shaft Extension  1.88 in
Thru-bolts Extension  0
