Industrial Motors

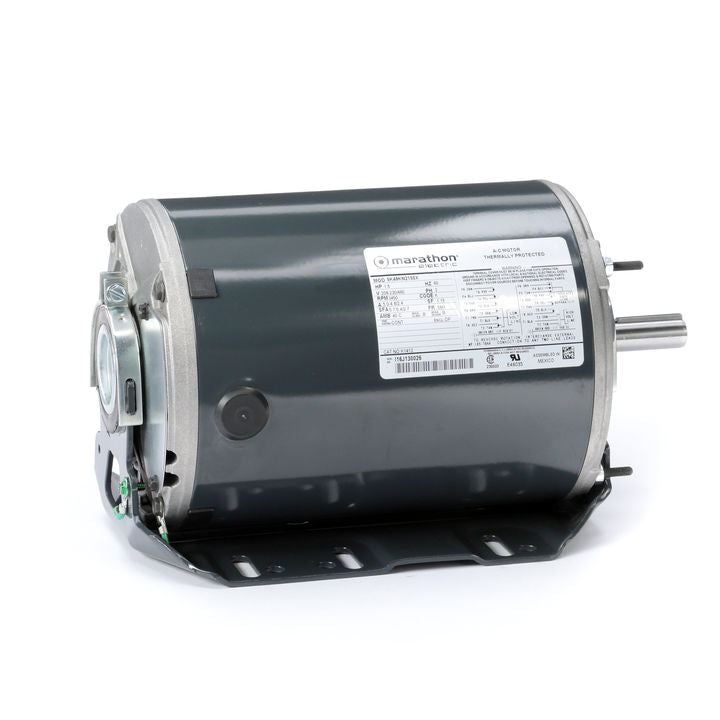

Marathon Electric K1413, 1 1/2 Hp, 3600 Rpm, 56H FR, 208-230/460 Vac, 3 PH, Dripproof, Resilient Base, Fan Blower Motor, Auto Over Load, 5K49KN2150X.

Marathon Electric K1413, 1 1/2 Hp, 3600 Rpm, 56H FR, 208-230/460 Vac, 3 PH, Dripproof, Resilient Base, Fan Blower Motor, Auto Over Load, 5K49KN2150X.

$969.00
$969.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$969.00 $920.55
Sale

K1413, 1 1/2 Hp, 3600 Rpm, 56H FR, 208-230/460 Vac, 3 PH, Dripproof, Resilient Base, Fan Blower Motor, Auto Over Load, 5K49KN2150X.

Engineering Data

Nameplate Specifications

Output HP  1.5 Hp
Output KW  1.12 kW
Frequency  60 Hz
Voltage  208-230/460 V
Current  5.0-4.8,2.4 A
Speed  3450 rpm
Service Factor  1.15
Phases  3
Efficiency  72 %
Duty  CONT
Insulation Class  B
Design Code  B
KVA Code  K
Frame  56H
Enclosure  DP
Overload Protector  AUTO
Ambient Temperature  40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Yes
CE  N

Technical Specifications

Electrical Type Three Phase
Starting Method  N/R
Poles  2
Rotation  CCW/CW
Mounting  RB
Motor Orientation  ANY
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  Rolled Steel
Overall Length  12.01 in
Frame Length  7.68 in
Shaft Diameter  0.63 in
Shaft Extension  1.88 in
Thru-bolts Extension  0
