Industrial Motors

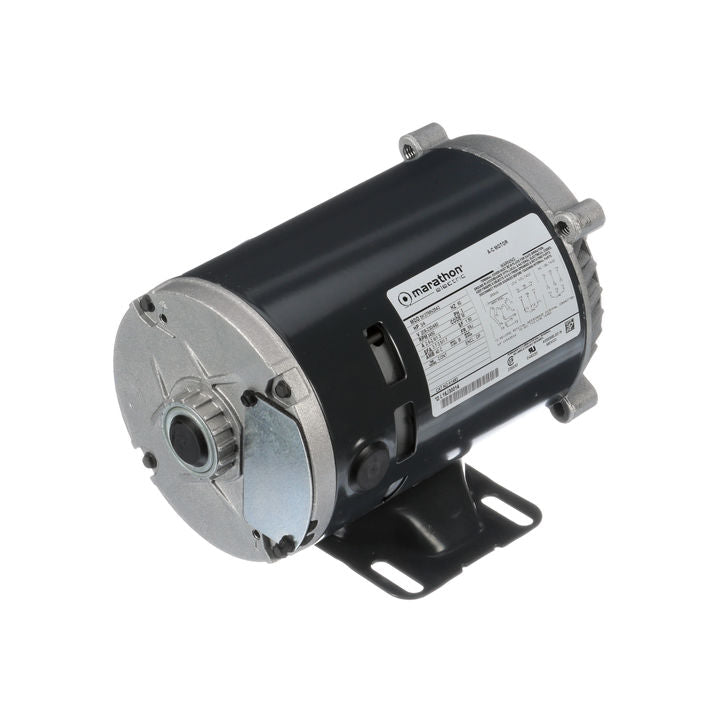

Marathon Electric K1483, 3/4 Hp, 3600 Rpm, 56J FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Centrifugal Pump (Jet Pump), 5K37MN3543

Marathon Electric K1483, 3/4 Hp, 3600 Rpm, 56J FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Centrifugal Pump (Jet Pump), 5K37MN3543

$636.00
$636.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$636.00 $604.20
Sale

K1483, 3/4 Hp, 3600 Rpm, 56J FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Centrifugal Pump (Jet Pump), 5K37MN3543

Engineering Data

Output HP:3/4 Hp
Output KW:0.56 kW
Frequency:60 Hz
Voltage:208-230/460 V
Current:2.6-2.6,1.3 A
Speed:3450 rpm
Service Factor:1.5
Phase:3
Efficiency:74.2 %
Power Factor:0
Duty:Continous
Insulation Class:B
KVA Code:M
Frame:56J
Enclosure:Drip Proof
Thermal Protection:N/R
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:YesCE:N
Technical Specifications
Electrical Type:Three Phase
Starting Method:N/R
Poles:2
Rotation:Clockwise/Counterclockwise
Mounting:Rigid Base
Motor Orientation:ANY
Drive End Bearing:LOCKED
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Overall Length:11.22 in
Frame Length:6.62 in
Shaft Diameter:0.63 in

View full details
