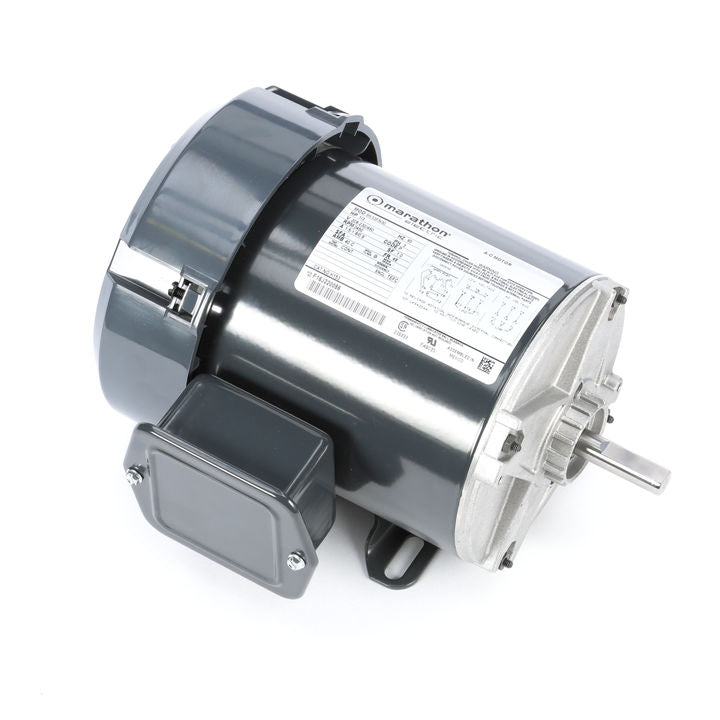

Marathon Electric K153, 1/3 Hp, 3600 Rpm, 48 FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose, Standard Efficiency, 5K33FN30

K153, 1/3 Hp, 3600 Rpm, 48 FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose, Standard Efficiency, 5K33FN30.

Engineering Data

Output HP : 1/3 HP
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 208-230/460 V
Current : 1.5-1.8,0.9 A
Speed : 3450 RPM
Service Factor : 1
Phase : 3
Efficiency : 61 %
Duty : Continous
Insulation Class : B
KVA Code : P
Frame : 48
Enclosure : Totally
Enclosed Fan Cooled
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N IP Code : 43
Technical Specifications
Electrical Type : Three Phase
Starting Method : N/R
Poles : 2
Rotation : Counterclockwise/Clockwise
Mounting : Rigid Base
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 10.2 in
Frame Length : 5.41 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
