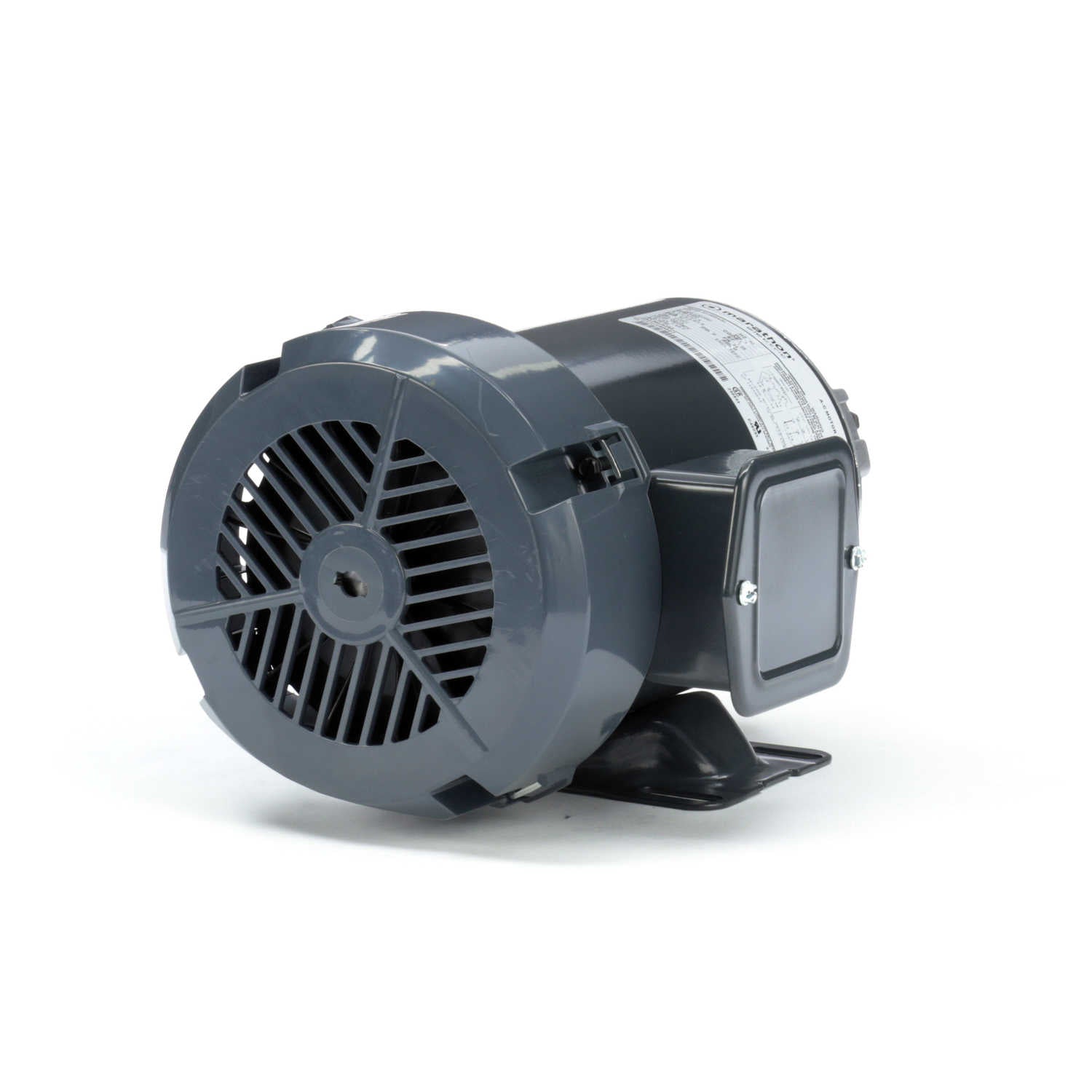

Marathon Electric K163 1 Hp, 3600 Rpm, 56 FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose, Standard Efficiency, 5K38RN30.

K163 1 Hp, 3600 Rpm, 56 FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose, Standard Efficiency, 5K38RN30.

Engineering Data

Output HP : 1 HP
Output KW : 0.75 kW
Frequency : 60 Hz
Voltage : 208-230/460 V
Current : 3.2-3.0,1.5 A
Speed : 3450 RPM
Service Factor : 1.25
Phase : 3
Efficiency : 78.5 %
Duty : Continous
Insulation Class : B
Design Code : B
KVA Code : L
Frame : 56
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Three Phase
Starting Method : N/R
Poles : 2
Rotation : Counterclockwise/Clockwise
Mounting : Rigid Base
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 12.36 in
Frame Length : 7.22 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
