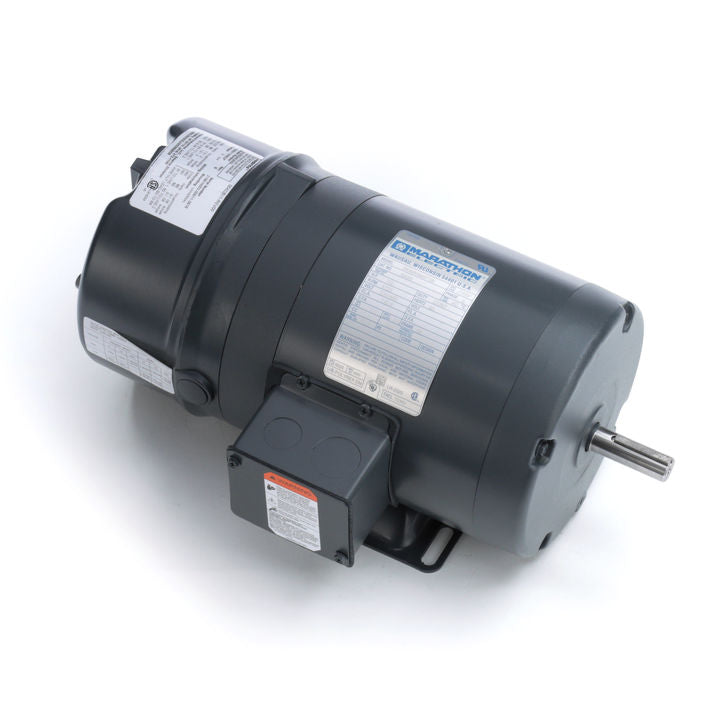

Marathon Electric K2045A, 2 Hp, 1800 Rpm, 145T FR, 230/460 Vac, 3 PH, Totally Enclosed, Rigid Base, Brake Motor, 145TTFR16361.

K2045A, 2 Hp, 1800 Rpm, 145T FR, 230/460 Vac, 3 PH, Totally Enclosed, Rigid Base, Brake Motor, 145TTFR16361.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60 Hz
Voltage:230/460 V
Current:5.8/2.9 A
Speed:1745 rpm
Service Factor:1
Phase:3
Efficiency:86.5 %
Power Factor:75.6
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:L
Frame:145T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:6 Ohms
Mounting:Rigid Base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:18.66 in
Frame Length:8.00 in
Shaft Diameter:0.875 in
Shaft Extension:2.25 in
Assembly/Box Mounting:F1 ONLY
