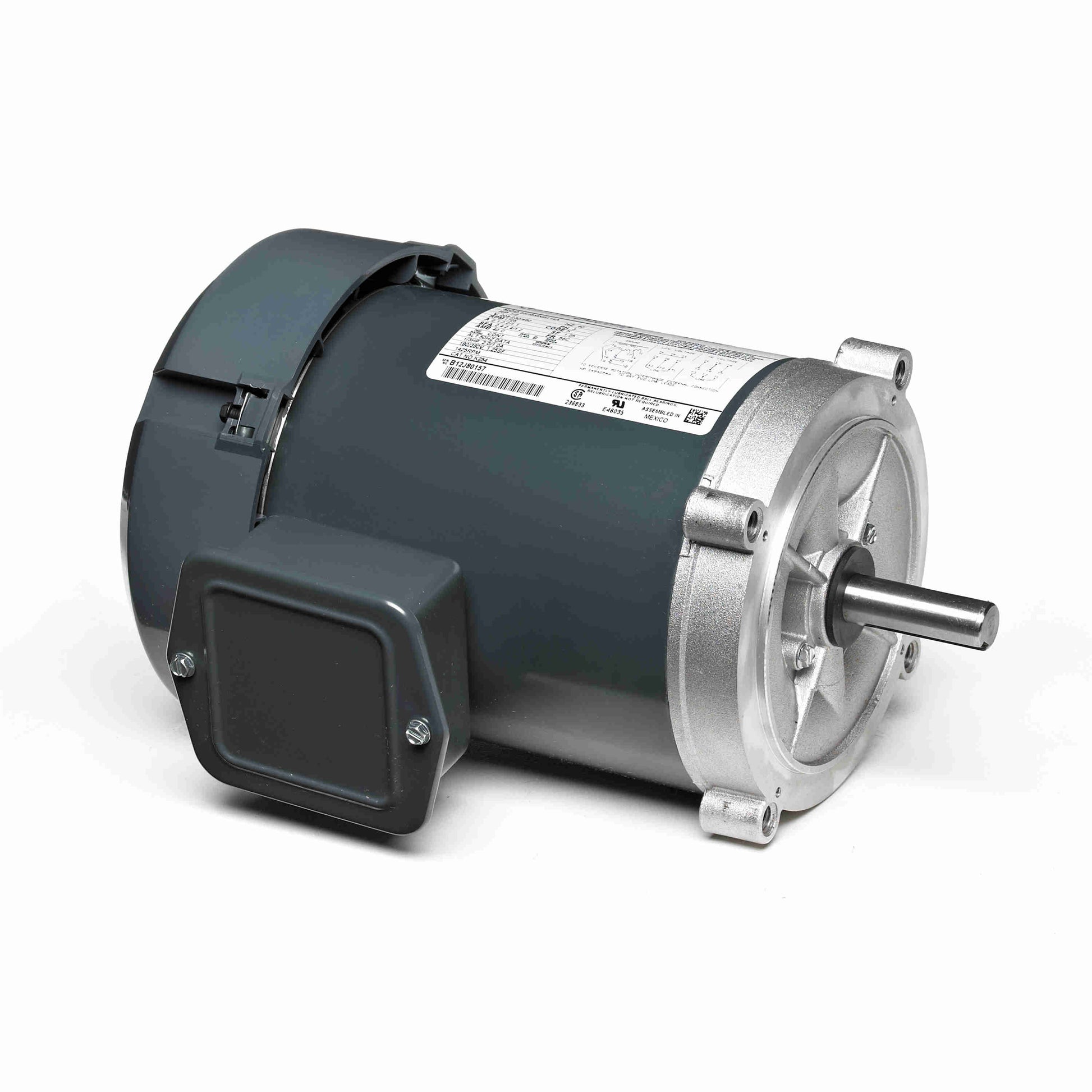

Marathon Electric K233A, 1 Hp, 3600 Rpm, 56C FR, 230/460 Vac, 3 PH, Totally Enclosed, C-Face Footless, Centrifugal Pump (Jet Pump) 56T34F99030.

K233A, 1 Hp, 3600 Rpm, 56C FR, 230/460 Vac, 3 PH, Totally Enclosed, C-Face Footless, Centrifugal Pump (Jet Pump) 56T34F99030.

Engineering Data

Output HP : 1 Hp
Output KW : 0.75 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 3.0/1.5 A
Speed : 3450 rpm
Service Factor : 1.4
Phase : 3
Efficiency : 78.5 %
Duty : Continous
Insulation Class : B
Design Code : B
KVA Code : J
Frame : 56C
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y IP
Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 2
Rotation : Reversible
Mounting : Round
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : NEMA 56
Overall Length : 11.82 in
Frame Length : 6.56 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.06 in
Assembly/Box Mounting : F1 Only
