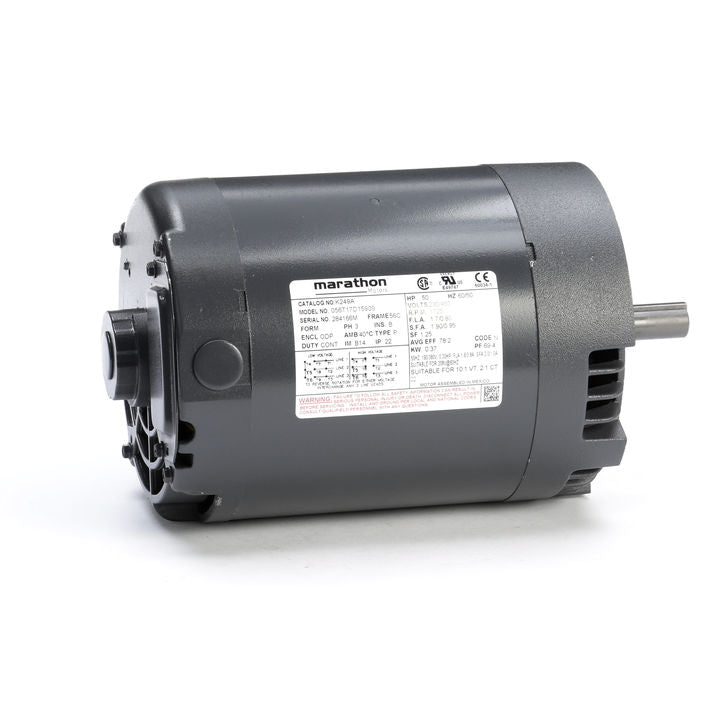

Marathon Electric K250A 3/4 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footless, General Purpose, 56T17D15906.

K250A 3/4 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footless, General Purpose, 56T17D15906.

Engineering Data

Output HP : 0.75 HP
Output KW : 0.56 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 2.6/1.3 A
Speed : 1725 RPM
Service Factor : 1.25
Phase : 3
Efficiency : 81.1 %
Duty : Continous
Insulation Class : B
Design Code : B
KVA Code : K
Frame : 56C
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4
Rotation : Reversible
Mounting : Round
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 11.5 in
Frame Length : 8.25 in
Shaft Diameter : 0.625 in
Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 Out ODE Brkt Radial
