Industrial Motors

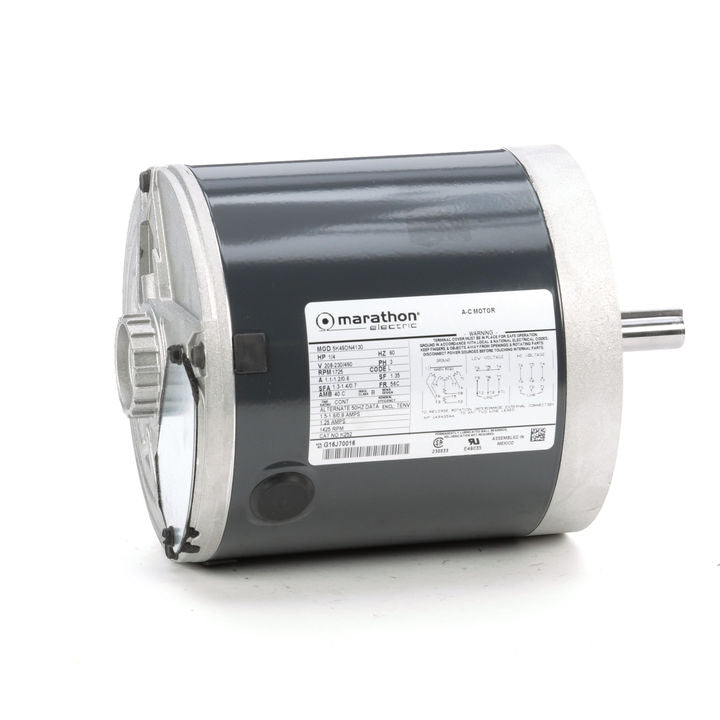

Marathon Electric K252, 1/4 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TENV, C-Face Footless, General Purpose, Standard Efficiency, 5K49DN4130.

Marathon Electric K252, 1/4 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TENV, C-Face Footless, General Purpose, Standard Efficiency, 5K49DN4130.

$647.00
$647.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$647.00 $614.65
Sale

K252, 1/4 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TENV, C-Face Footless, General Purpose, Standard Efficiency, 5K49DN4130.

Engineering Data

Output HP:1/4 Hp
Output KW:0.19 kW
Frequency:60 Hz
Voltage:208-230/460 V
Current:1.1-1.2,0.6 A
Speed:1725 rpm
Service Factor:1.35
Phase:3
Efficiency:67.4 %
Power Factor:0
Duty:Continuous
Insulation Class:B
KVA Code:L
Frame:56C
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:N/R
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Yes
CE:N
Technical Specifications
Electrical Type:Three Phase
Starting Method:N/R
Poles:4
Rotation:Counterclockwise/Clockwise
Mounting:Round
Motor Orientation:ANY
Drive End Bearing:LOCKED
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Overall Length:9.52 in
Frame Length:5.34 in
Shaft Diameter:0.63 in
