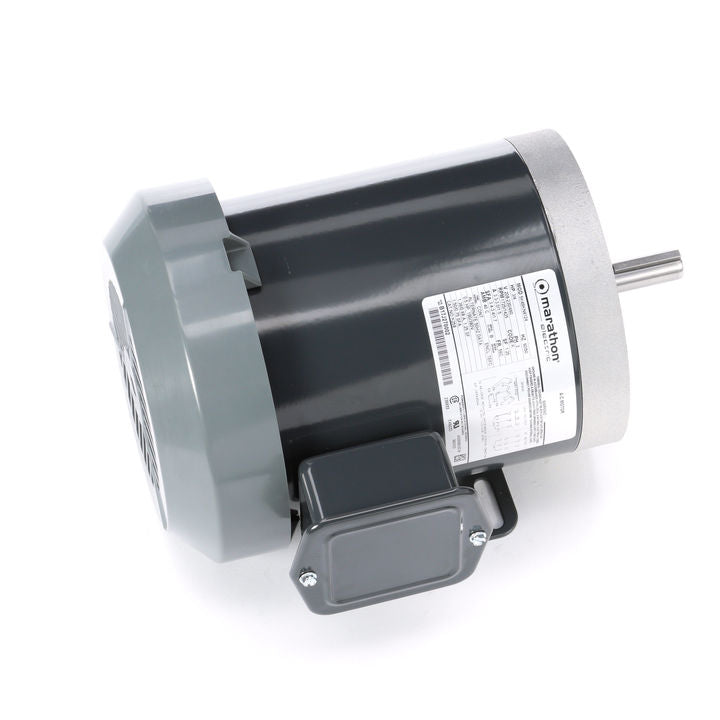

Marathon Electric K258, 3/4 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 5K49KN4124

Marathon Electric K258, 3/4 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 5K49KN4124

$849.00
$849.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$849.00 $806.55
Sale

K258, 3/4 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 5K49KN4124.

Engineering Data

Output HP:3/4 Hp
Output KW:0.56 kW
Frequency:60 Hz
Voltage:208-230/460 V
Current:3.3-3.0,1.5 A
Speed:1725 rpm
Service Factor:1.25
Phase:3
Efficiency:70 %
Power Factor:0
Duty:Continuous
Insulation Class:B
KVA Code:K
Frame:56C
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:N/R
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:YesCE:N
Technical Specifications
Electrical Type:Three Phase
Starting Method:N/R
Poles:4
Rotation:Counterclockwise/Clockwise
Mounting:Rigid Base
Motor Orientation:ANY
Drive End Bearing:LOCKED
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Overall Length:11.41 in
Frame Length:6.15 in
Shaft Diameter:0.63 in
Shaft Extension:1.88 in
