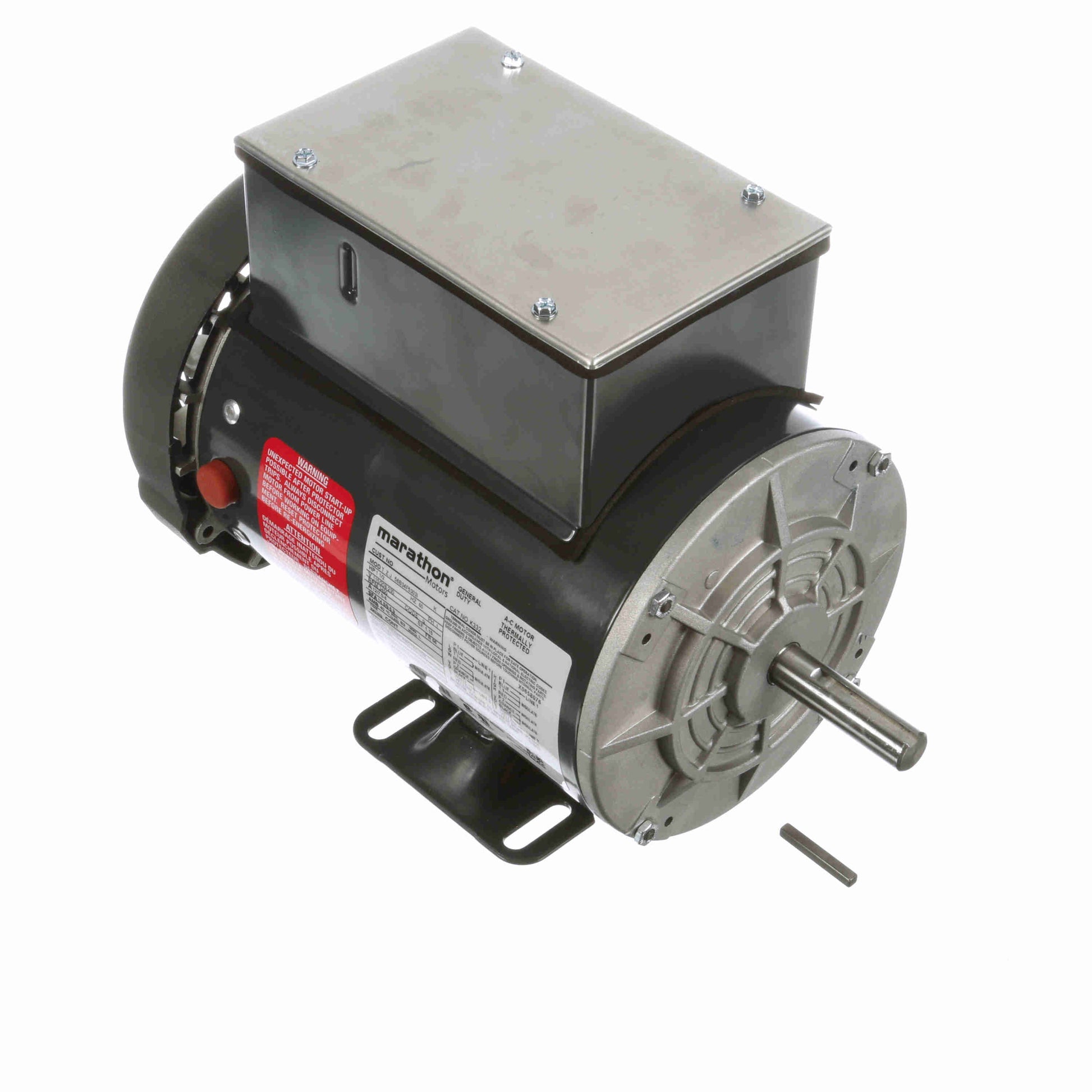

Marathon Electric K332, 1 1/2 Hp, 3600 Rpm, 56 FR, 115/208-230 V, 1 PH, TEFC, Rigid Base, General Purpose, No Over Load, 56B34F5303.

K332, 1 1/2 Hp, 3600 Rpm, 56 FR, 115/208-230 V, 1 PH, TEFC, Rigid Base, General Purpose, No Over Load, 56B34F5303.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:12.0/7.5-6.0 A
Speed:3450 rpm
Service Factor:1.15
Phase:1
Efficiency:77 %
Power Factor:98
Duty:Continuous
Insulation Class:B
Design Code:L
KVA Code:G
Frame:56
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized ( Not Protector)CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:13.32 in
Frame Length:8.06 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F3
