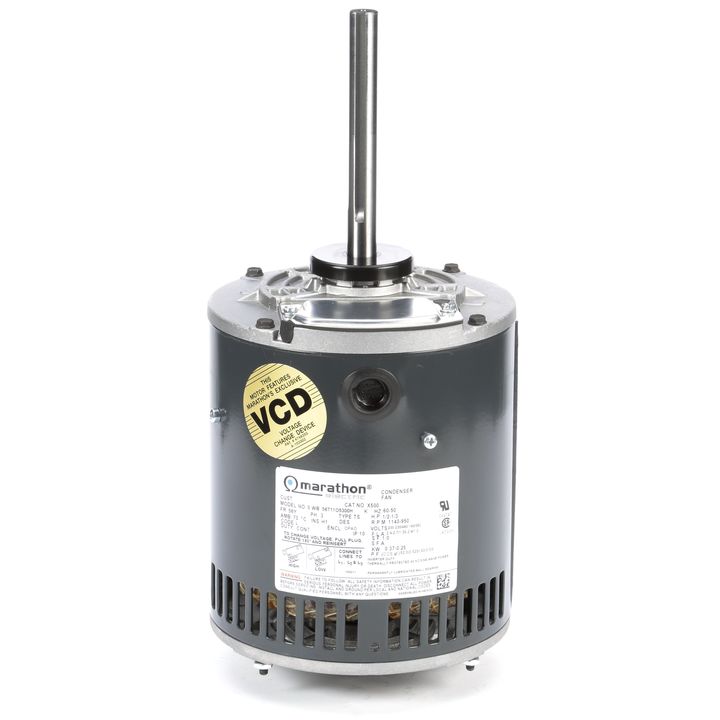

Marathon Electric K378, 3/4 Hp, 1140 Rpm, 56Y FR, 208-230/460 Vac, 3 PH, Belly Band/Resilient Ring, Condenser Fan/Heat Pump, Open Air Over, 5K46LN6033S

K378, 3/4 Hp, 1140 Rpm, 56Y FR, 208-230/460 Vac, 3 PH, Belly Band/Resilient Ring, Condenser Fan/Heat Pump, Open Air Over, 5K46LN6033S

Engineering Data

Output HP : 0.75 Hp
Output KW : 0.56 kW
Frequency : 60 Hz
Voltage : 208-230/460 V
Current : 3.0-3.4,1.7 A
Speed : 1140 rpm
Service Factor : 1
Phase : 3
Efficiency : 72.2 %
Duty : Continous Insulation
Class : B KVA
Code : K
Frame : 56Z
Enclosure : Drip Proof
Overload Protector : AUTO
Ambient Temperature : 65 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Three Phase
Starting Method : N/R
Poles : 6
Rotation : Counterclockwise/Clockwise
Mounting : Round
Motor Orientation : Vsu
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 14.89 in
Frame Length : 6.55 in
Shaft Diameter : 0.630 in
Shaft Extension : 6 in
Thru-bolts Extension : 0 in
