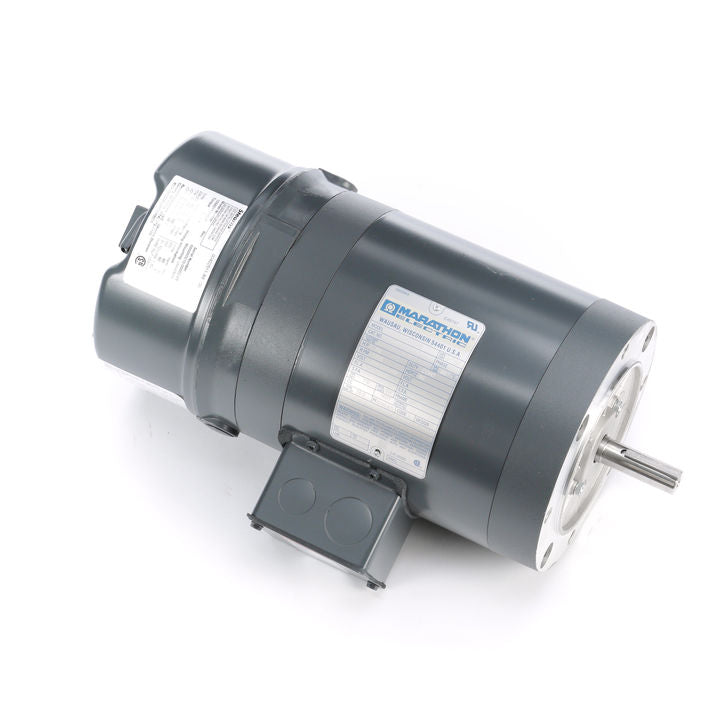

Marathon Electric K467, 1/2 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footless, Brake Motor, 056T17F15914.

K467, 1/2 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footless, Brake Motor, 056T17F15914.

Engineering Data

Output HP : 0.50 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 208-230/460 V
Current : 2.3-2.4/1.2 A
Speed : 1725 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 72.1 %
Duty : Continuous
Insulation Class : B
Design Code : B
KVA Code : M
Frame : 56C
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4
Rotation : Reversible
Mounting : Bolt-on Base
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Shaft Type : NEMA 56
Overall Length : 16.23 in
Frame Length : 6.66 in
Shaft Diameter : 0.625 in
haft Extension : 2.06 in
Assembly/Box Mounting : F1
ONLY UPC : 722856065858
Weight : 31.00 LB
