Industrial Motors

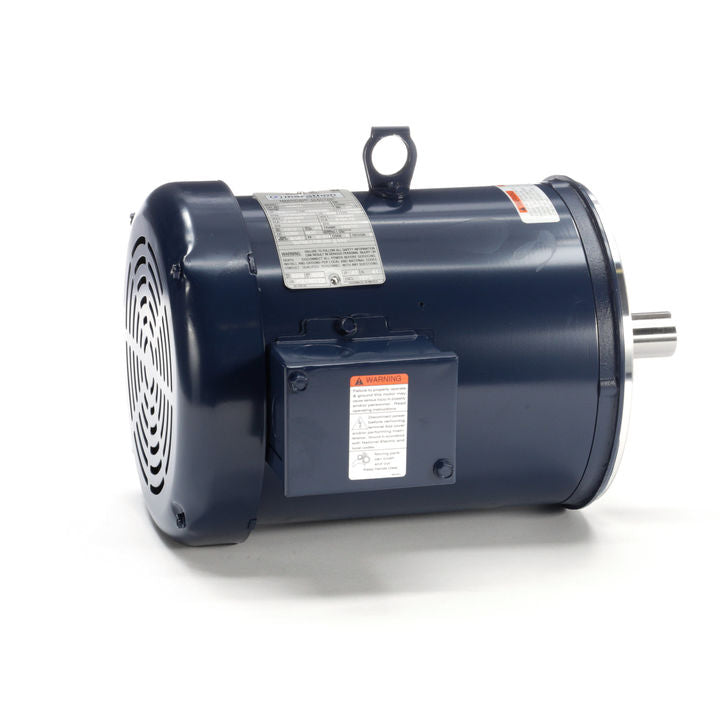

Marathon Electric K640A, 3 Hp, 1800 Rpm, 182T FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, General Purpose, 182TTFW16049

Marathon Electric K640A, 3 Hp, 1800 Rpm, 182T FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, General Purpose, 182TTFW16049

$1,020.00
$1,020.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,020.00 $969.00
Sale

K640A, 3 Hp, 1800 Rpm, 182T FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, General Purpose, 182TTFW16049.

Engineering Data

60 Hertz
HP 3
Voltage 230/460
kW N/A FL Amps 8.2/4.1
RPM 1725
FL Eff 82.5 % SF 1

Phase 3
Insulation Class F
Frame N/A
Duty Continuous
Enclosure TEFC
Ambient 40
Mounting N/R NEMA Design
Orientation Horizontal or Vertical
Starting Type Squirrel Cage Induction
Assembly N/A KVA Code K
Drive End Bearing LOCKED
IP Code
Opposite End Bearing BALL
Drive End Bearing Size 25MM
Opposite End Bearing Size
Hazardous Location N/R
Weight 48.75 LB lbs
CE N/A CSA N/A
UL Y
Thermal Protection None

View full details

Attachments
