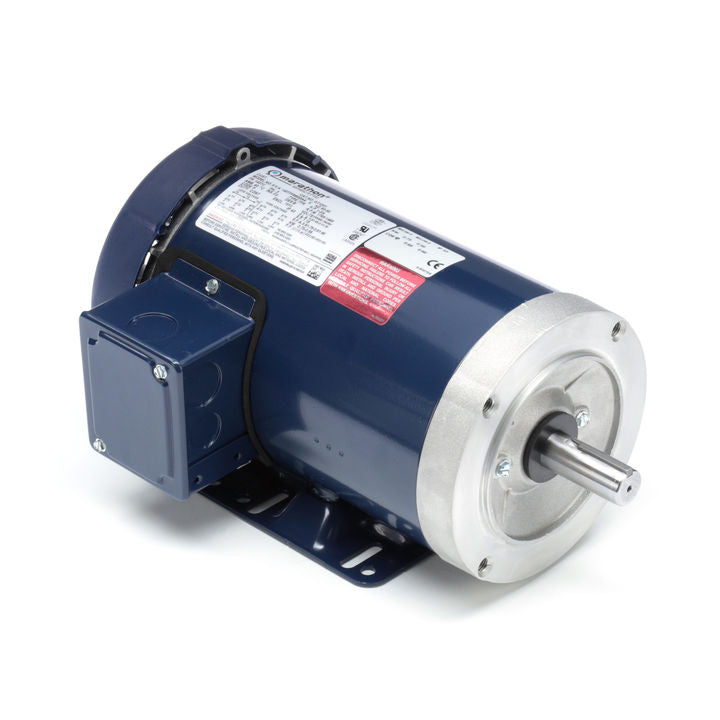

Marathon Electric K700A, 2 Hp, 3600 Rpm, 182TC FR, 230/460 Vac, 3 PH, TEFC, C-Face with Base, General Purpose, Standard Efficiency, 182TTFW16085

K700A, 2 Hp, 3600 Rpm, 182TC FR, 230/460 Vac, 3 PH, TEFC, C-Face with Base, General Purpose, Standard Efficiency, 182TTFW16085

Engineering Data

Output HP : 1.50 HP
Output KW : 1.1 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 6.0/3.0 A
Speed : 1170 RPM
Service Factor : 1
Phase : 3
Efficiency : 87.5 %
Duty : Continous
Insulation Class : F
Design Code : B
KVA Code : K
Frame : 182TC
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : Y
CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 6
Rotation : Reversible
Mounting : Bolt-on Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 14.47 in
Frame Length : 9.00 in
Shaft Diameter : 1.125 in
Shaft Extension : 2.88 in
Assembly/Box Mounting : F1 Only
UPC : 722856051981
Weight : 70.00 LB
