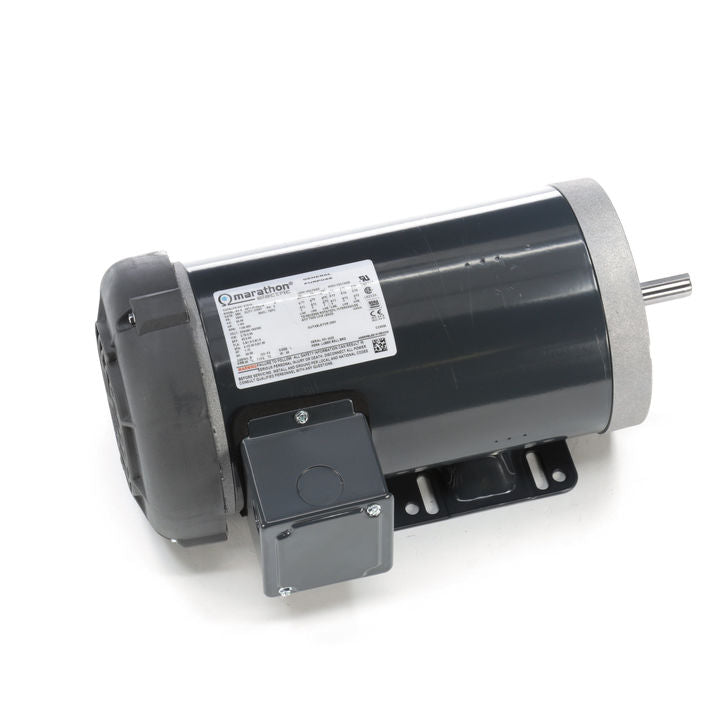

Marathon Electric K701A, 1 Hp, 1200 Rpm, 56HC FR, 208-230/460 Vac, 3 PH, TEFC, C-Face with Base, General Purpose, Standard Efficiency, 56T11F15521

K701A, 1 Hp, 1200 Rpm, 56HC FR, 208-230/460 Vac, 3 PH, TEFC, C-Face with Base, General Purpose, Standard Efficiency, 56T11F15521

Engineering Data

Output HP :1 HP
Output KW :0.75 kW
Frequency :60 Hz
Voltage :230/460 V
Current :3.8/1.9 A
Speed :1140 RPM
Service Factor :1.15
Phase :3
Efficiency :82.5 %Duty :Continuous
Insulation Class :F
Design Code :B
KVA Code :L
Frame :56HC
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :YCE :YIP Code :43
Technical Specifications
Electrical Type :Squirrel Cage Induction Run
Starting Method :Across The Line
Poles :6
Rotation :Reversible
Mounting :Bolt-on Base
Motor Orientation :Horizontal Or Up Or Down
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :NEMA 56
Overall Length :15.15 in
Frame Length :9.65 in
Shaft Diameter :0.625 in
Shaft Extension :1.87 in
Assembly/Box Mounting :F1 ONLY
UPC :722856051998
