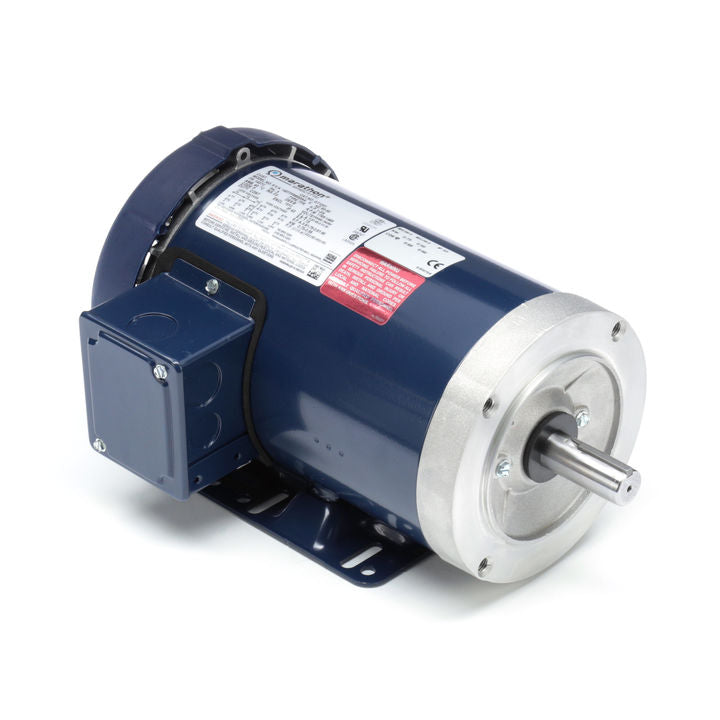

Marathon Electric K707, 3/4 Hp, 1800 Rpm, 56C FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 56T17F5337.

K707, 3/4 Hp, 1800 Rpm, 56C FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 56T17F5337.

Engineering Data

60 Hertz
HP 3/4
Voltage 575
kW .56 FL Amps 1.2
RPM 1800
FL Eff 75.5 % SF 1.15

Phase 3
Insulation Class F
Frame 56C
Duty CONTINUOUS
Enclosure TEFC
Ambient 40
Mounting C-Face - Removable Base NEMA
Design B
Orientation HORIZONTAL OR UP OR DOWN
Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA
Code L
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size N/A
Opposite End Bearing Size N/A
Weight 24.2 LB lbs
CE N CSA Y
UL Recognized Construction
Thermal Protection NOT
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4
Rotation : Reversible
Mounting : Bolt-on Base
Motor Orientation : Horizontal Or Up Or Down
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : NEMA 56 Overall
Length : 11.81 in
Frame Length : 6.56 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.06 in
Assembly/Box Mounting : F1 Only
