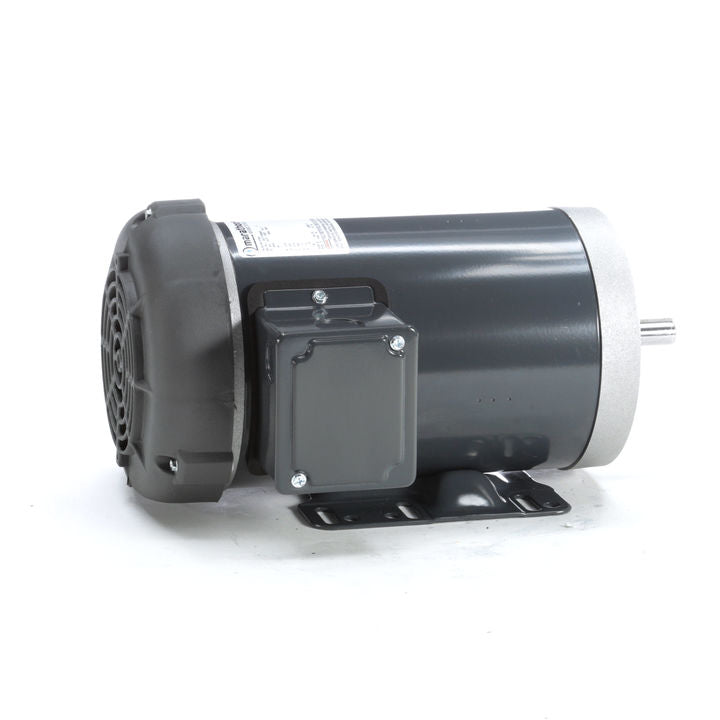

Marathon Electric K709A, 1 Hp, 1800 Rpm, 56HC FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 056T17F15642.

K709A, 1 Hp, 1800 Rpm, 56HC FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 056T17F15642.

Engineering Data

Output HP :1 HP
Output KW :0.75 kW
Frequency :60 Hz
Voltage :575 V
Current :1.3 A
Speed :1725 RPM
Service Factor :1.15
Phase :3
Efficiency :85.5 %
Duty :Continuous
Insulation Class :F
Design Code :B
KVA Code :P
Frame :56HC
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :Y
CE :YIP Code :43
Technical Specifications
Electrical Type :Squirrel Cage Induction Run
Starting Method :Across The Line
Poles :4
Rotation :Reversible
Mounting :Bolt-on Base
Motor Orientation :Horizontal Or Up Or Down
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :NEMA 56
Overall Length :14.15 in
Frame Length :8.65 in
Shaft Diameter :0.625 in
Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY
UPC :722856052018
