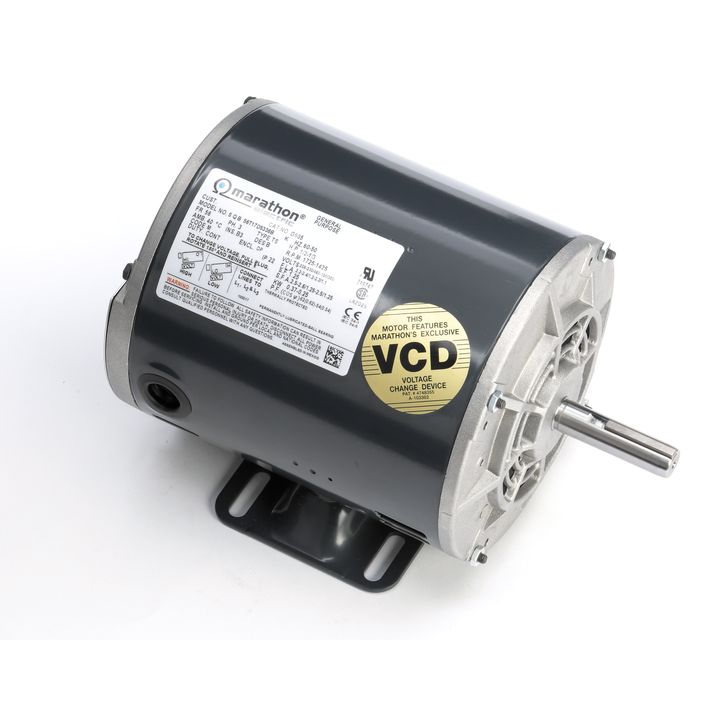

Marathon Electric K721, 1 1/2 Hp, 3600 Rpm, 56C FR, 575 Vac, 3 PH, General Purpose, TEFC, C-Face Footed, (Rigid and Removable Base), 056T34F99020.

K721, 1 1/2 Hp, 3600 Rpm, 56C FR, 575 Vac, 3 PH, General Purpose, TEFC, C-Face Footed, (Rigid and Removable Base), 056T34F99020.

Engineering Data

Nameplate Specifications

Output HP : 1.50 HP
Output KW : 1.1 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 1.6 A
Speed : 3450 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 84 %
Duty : Continous
Insulation Class : F
Design Code : B
KVA Code : M
Frame : 56C
Enclosure : Totally
Enclosed Fan Cooled
Overload Protector : No A
mbient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 2
Rotation : Reversible
Mounting : Bolt-on Base
Motor Orientation : Horizontal Or Up Or Down
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 13.31 in
Frame Length : 8.06 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.06 in
Assembly/Box Mounting : F1 Only
UPC : 722856052025
Weight : 37.00 LB
