Industrial Motors

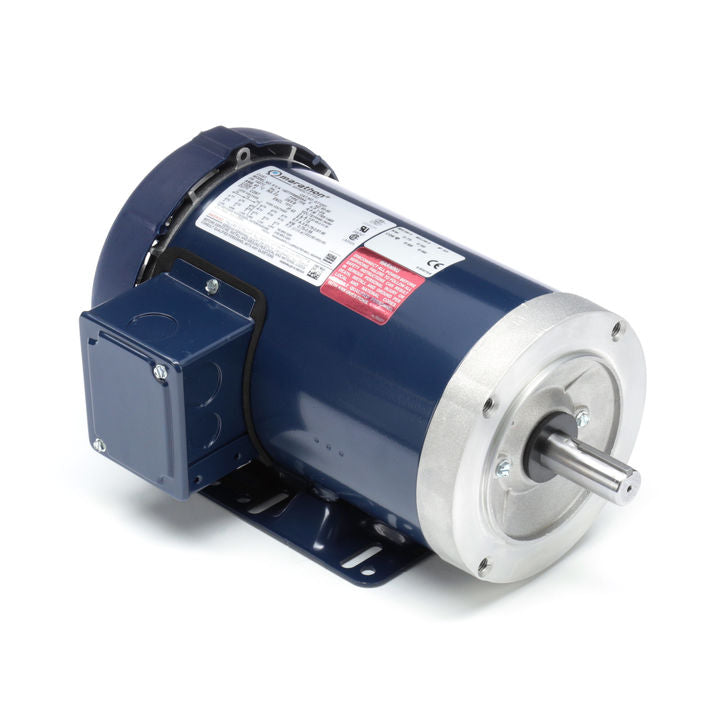

Marathon Electric K723A, 2 Hp, 3600 Rpm, 56HC FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 56T34F99015

Marathon Electric K723A, 2 Hp, 3600 Rpm, 56HC FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 56T34F99015

$1,282.00
$1,282.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,282.00 $1,217.90
Sale

K723A, 2 Hp, 3600 Rpm, 56HC FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 56T34F99015

Engineering Data

Output HP : 2 Hp
Output KW : 1.5 kW
Frequency : 60 Hz
kW 1.49 FL Amps 2.4
RPM 3600
FL Eff 80 % SF 1.15

Phase 3
Insulation Class F
Frame 56HC
Duty CONTINUOUS
Enclosure TEFC
Ambient 40
Mounting C-Face - Removable Base NEMA
Design B
Orientation HORIZONTAL OR UP OR DOWN
Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA
Code L
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size N/A
Opposite End Bearing Size N/A
Weight 30 LB lbs
CE N/A CSA Y
UL Recognized Construction
Thermal Protection NOT
