Industrial Motors

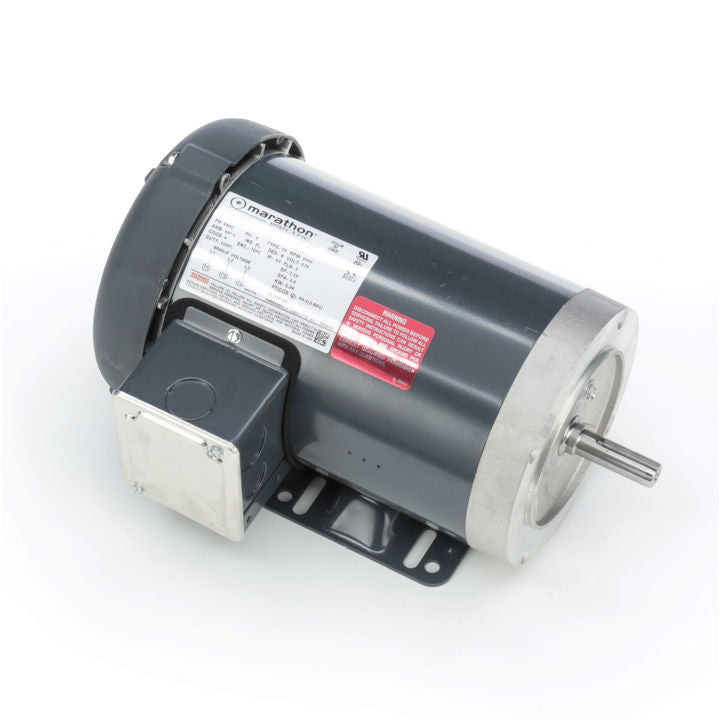

Marathon Electric K725, 3 Hp, 3600 Rpm, 56HC FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 056T34F5353.

Marathon Electric K725, 3 Hp, 3600 Rpm, 56HC FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 056T34F5353.

$885.00
$885.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$885.00 $840.75
Sale

K725, 3 Hp, 3600 Rpm, 56HC FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 056T34F5353.

Engineering Data

HP 3 Voltage 575
kW 2.24 FL Amps 3.05
RPM 3600
FL Eff 84 % SF 1.15

Phase 3
Insulation Class F
Frame 56HC
Duty CONTINUOUS
Enclosure TEFC
Ambient 40
Mounting C-Face - Removable Base
NEMA Design B
Orientation HORIZONTAL OR UP OR DOWN
Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code K
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size N/A
Opposite End Bearing Size N/A
Weight 39.6 LB lbs
CE N CSA Y
UL Recognized Construction
Thermal Protection NOT
