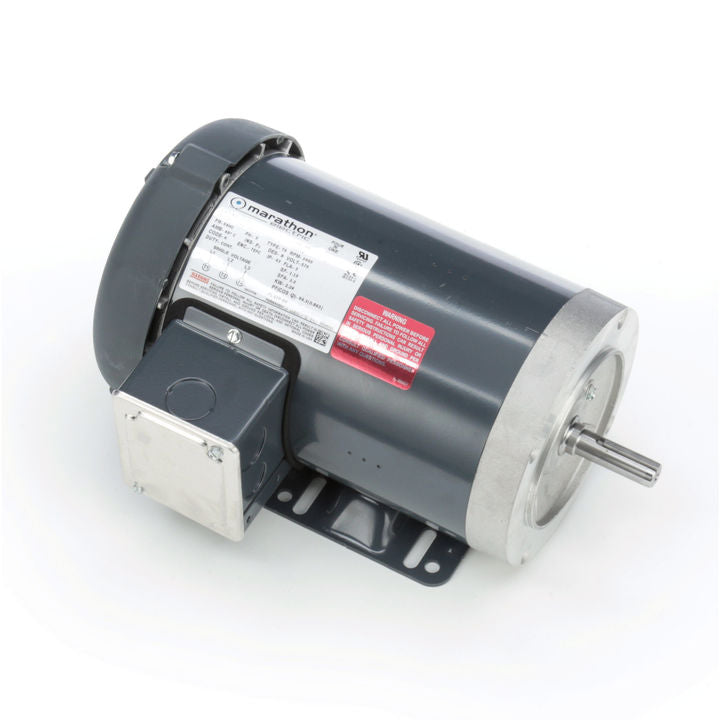

Marathon Electric K725A, 3 Hp, 3600 Rpm, 56HC FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 056T34F5353.

K725A, 3 Hp, 3600 Rpm, 56HC FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 056T34F5353.

Engineering Data

Output HP : 3 Hp
Output KW : 2.2 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 3.1 A
Speed : 3450 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 87.5 %
Duty : Continuous
Insulation Class : F Design
Code : A KVA
Code : M
Frame : 56HC
Enclosure : Totally Enclosed Fan Cooled Overload
Protector : No Ambient
Temperature : 40 °C
Drive End Bearing Size : 6205 Opp
Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y
IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 2
Rotation : Reversible
Mounting : Bolt-on Base
Motor Orientation : Horizontal Or Up Or Down
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : NEMA 56
Overall Length : 14.31 in
Frame Length : 9.06 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.06 in
Assembly/Box Mounting : F1 Only
