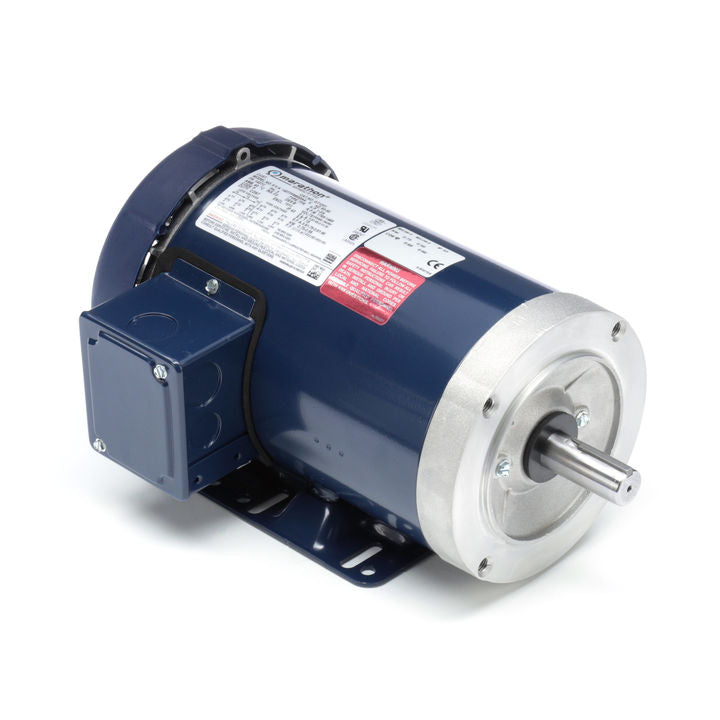

Marathon Electric K806A, 2 Hp, 1800 Rpm, 56HC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 56T17F15646.

K806A, 2 Hp, 1800 Rpm, 56HC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 56T17F15646.

Engineering Data

Output HP : 2 HP
Output KW : 1.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 6.0/3.0 A
Speed : 1725 RPM
ervice Factor : 1.15
Phase : 3
Efficiency : 86.5 %
Duty : Continuous
Insulation Class : B
Design Code : A
KVA Code : N
rame : 56HC
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Shaft Type : NEMA 56
Overall Length : 15.15 in
Frame Length : 9.65 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.06 in
Assembly/Box Mounting : F1 ONLY
UPC : 722856052070
Weight : 49.00 LB
