Industrial Motors

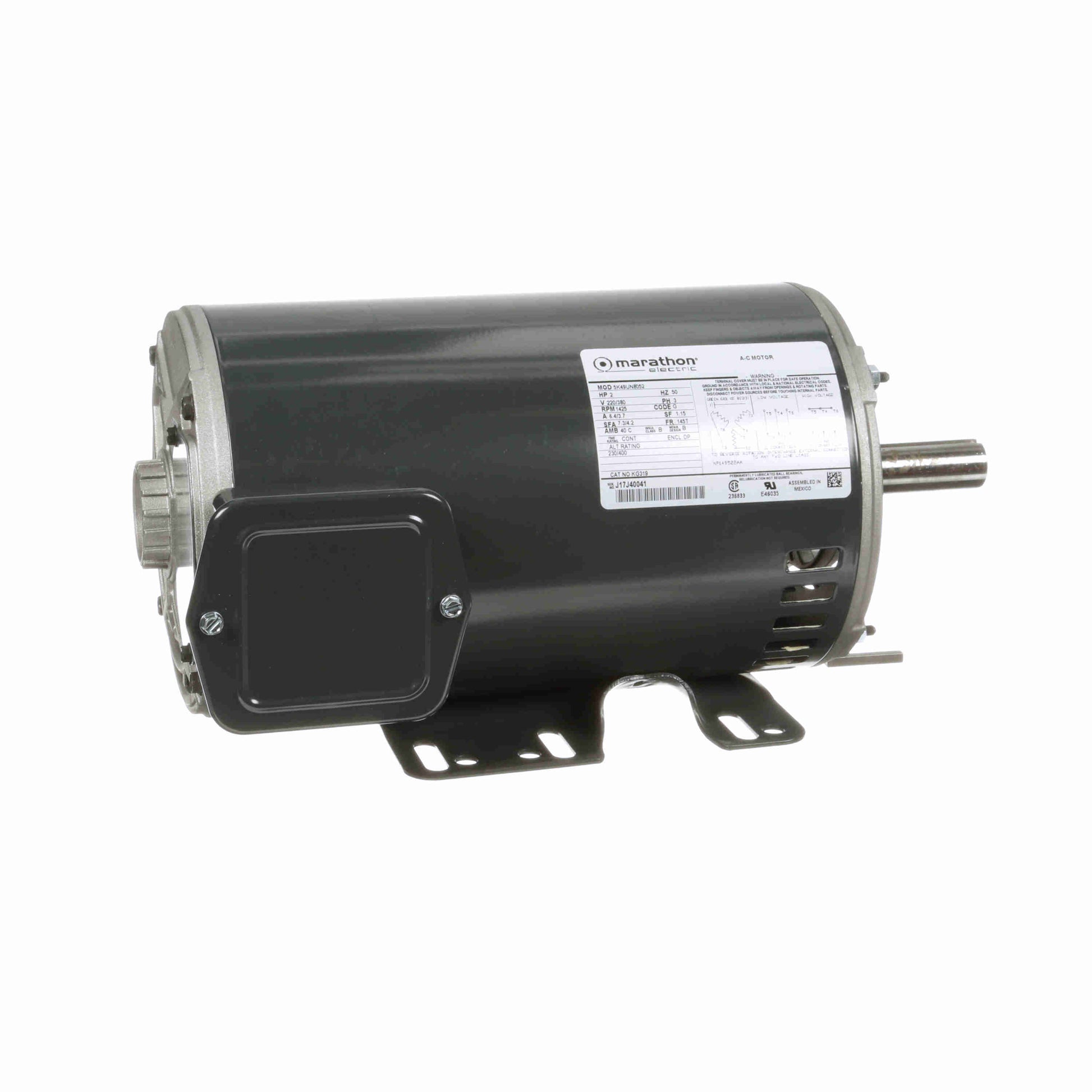

Marathon Electric KG319, 2 Hp, 1500 Rpm, 145T FR, 220/380 V, 3 PH, 50 Hertz, Dripproof, Rigid Base, 5K49UN8052.

Marathon Electric KG319, 2 Hp, 1500 Rpm, 145T FR, 220/380 V, 3 PH, 50 Hertz, Dripproof, Rigid Base, 5K49UN8052.

$1,247.00
$1,247.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,247.00 $1,184.65
Sale

KG319, 2 Hp, 1500 Rpm, 145T FR, 220/380 V, 3 PH, 50 Hertz, Dripproof, Rigid Base, 5K49UN8052.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:50 Hz
Voltage:220/380 V
Current:6.4,3.7 A
Speed:1425 rpm
Service Factor:1.15
Phase:3
Efficiency:81.5 %
Power Factor:0
Duty:Continuous
Insulation Class:B
Design Code:B
KVA Code:G
Frame:145T
Enclosure:Drip Proof
Thermal Protection:N/R
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Yes
CE:N
Technical Specifications
Electrical Type:Three Phase
Starting Method:N/R
Poles:4
Rotation:Counterclockwise/Clockwise
Mounting:Rigid Base
Motor Orientation:ANY
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Overall Length:14.23 in
Frame Length:9.63 in
Shaft Diameter:0.88 in
