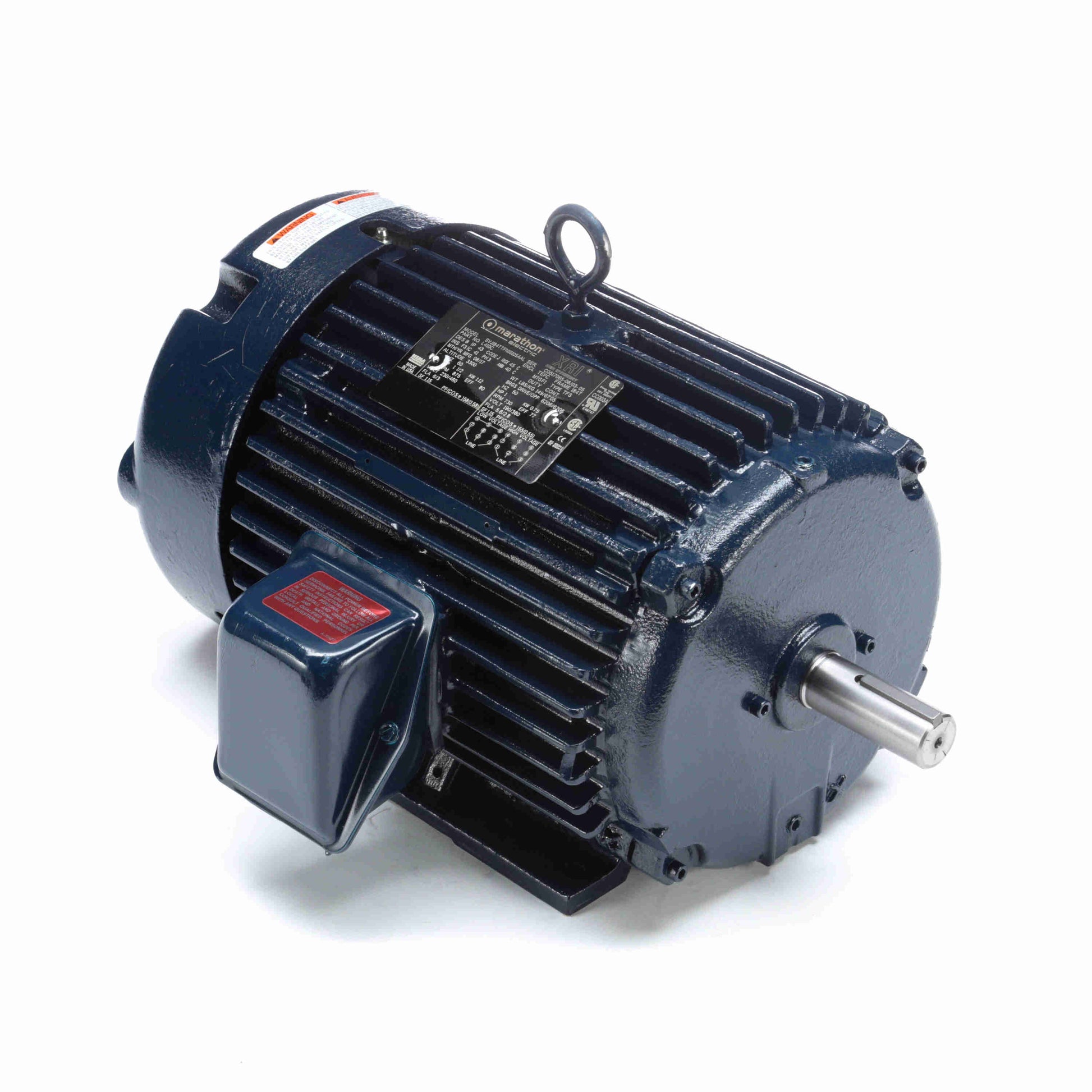

Marathon Electric L410C, 1 1/2 Hp, 900 Rpm, 184T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose,184TTFN16105.

L410C, 1 1/2 Hp, 900 Rpm, 184T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose,184TTFN16105.

Engineering Data

Output HP : 1.50 HP
Output KW : 1.1 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 6.0/3.0 A
Speed : 875 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 80 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : J
Frame : 184T
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 8
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Cast Iron
Shaft Type : T
Overall Length : 17.87 in
Frame Length : 10.00 in
Shaft Diameter : 1.125 in
Shaft Extension : 2.75 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856052124
Weight : 149.00 LB
