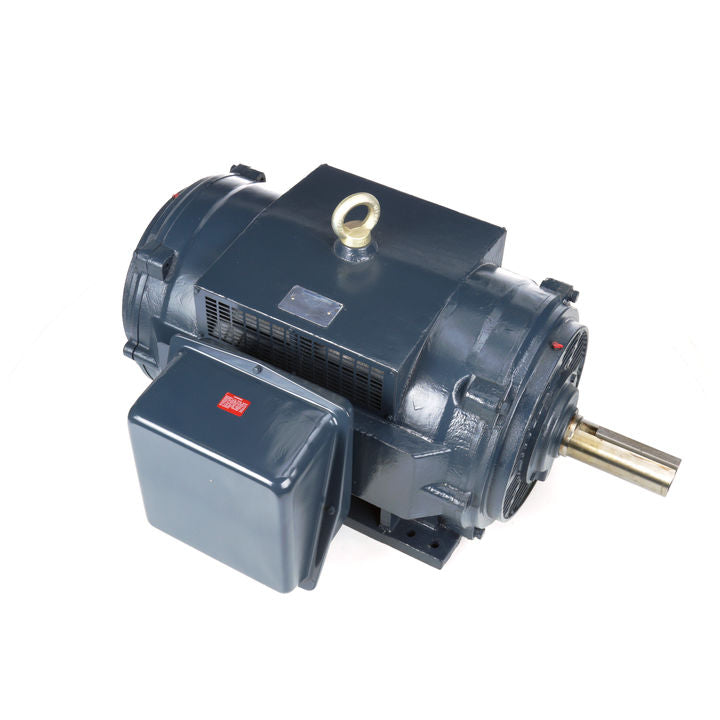

Marathon Electric M315C, 5 Hp, 3600 Rpm, 182JM FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footless, Rigid BaseMotor, 326TSTDBD6026.

M315C, 5 Hp, 3600 Rpm, 182JM FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footless, Rigid BaseMotor, 326TSTDBD6026.

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:230/460 V
Current:12.4/6.2 A
Speed:3500 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:86
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:182JM
Enclosure:Drip Proof
Thermal Protection:N
oAmbient Temperature:40 °C
Drive End Bearing Size:6207
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:12
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:JM
Overall Length:14.82 in
Frame Length:9.00 in
Shaft Diameter:0.875 in
Shaft Extension:4.25 in
Assembly/Box Mounting:F1 ONLY
