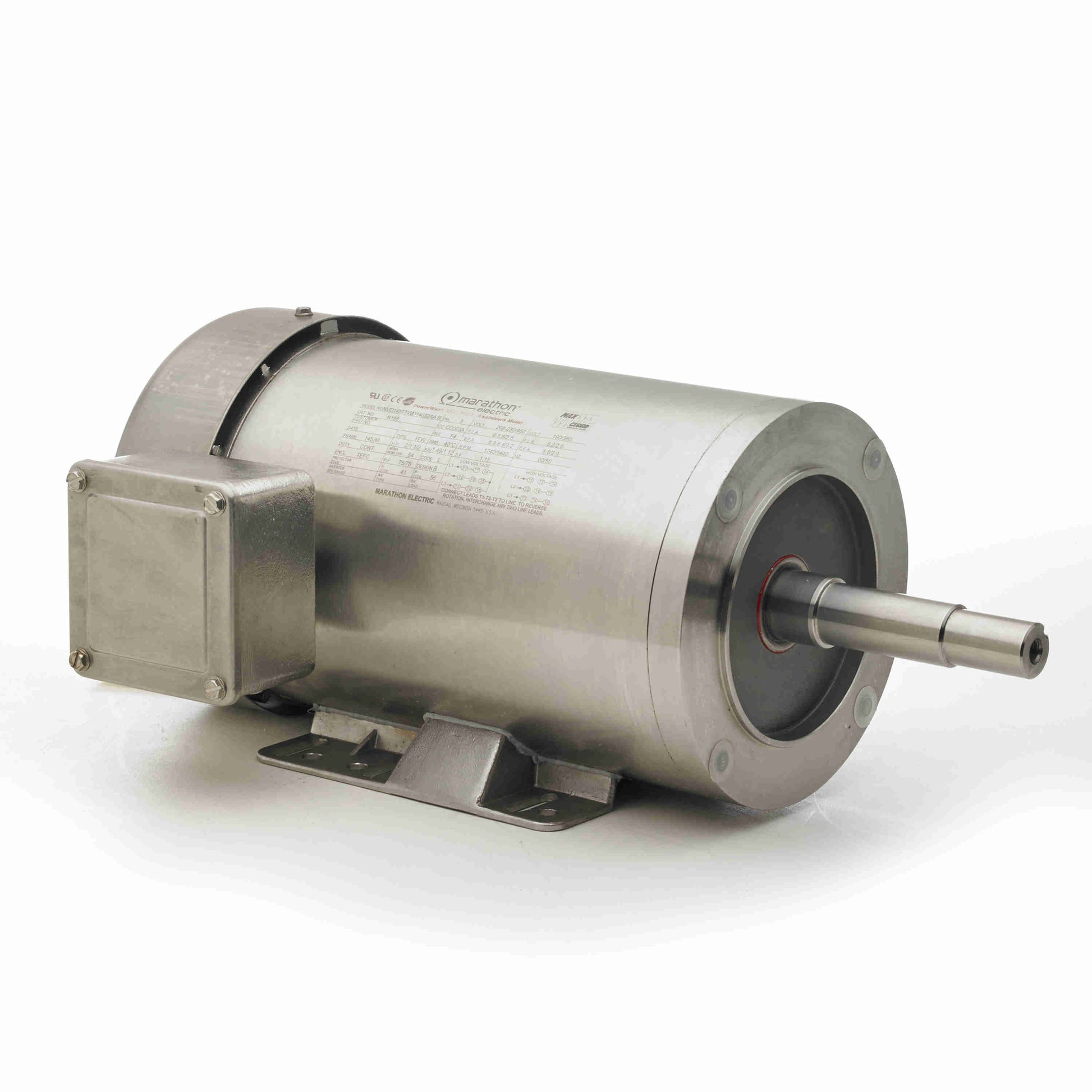

Marathon Electric N160, 7 1/2 Hp, 3600 Rpm, 213JM FR, 230/460 Vac, 3 PH, TEFC, Stainless, SXT-Plus Wash Down Duty, 213TTWD14002.

N160, 7 1/2 Hp, 3600 Rpm, 213JM FR, 230/460 Vac, 3 PH, TEFC, Stainless, SXT-Plus Wash Down Duty, 213TTWD14002.

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60 Hz
Voltage:230/460 V
Current:18.4/9.2 A
Speed:3530 rpm
Service Factor:1.15
Phase:3
Efficiency:88.5 %
Power Factor:85.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:213JM
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6209
Opp Drive End Bearing Size:6207
UL:Recognized
CSA:Y
CE:YIP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:1.45 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:JM
Overall Length:19.81 in
Shaft Diameter:1.375 in
Shaft Extension:4.28 in
Assembly/Box Mounting:F1 Only
