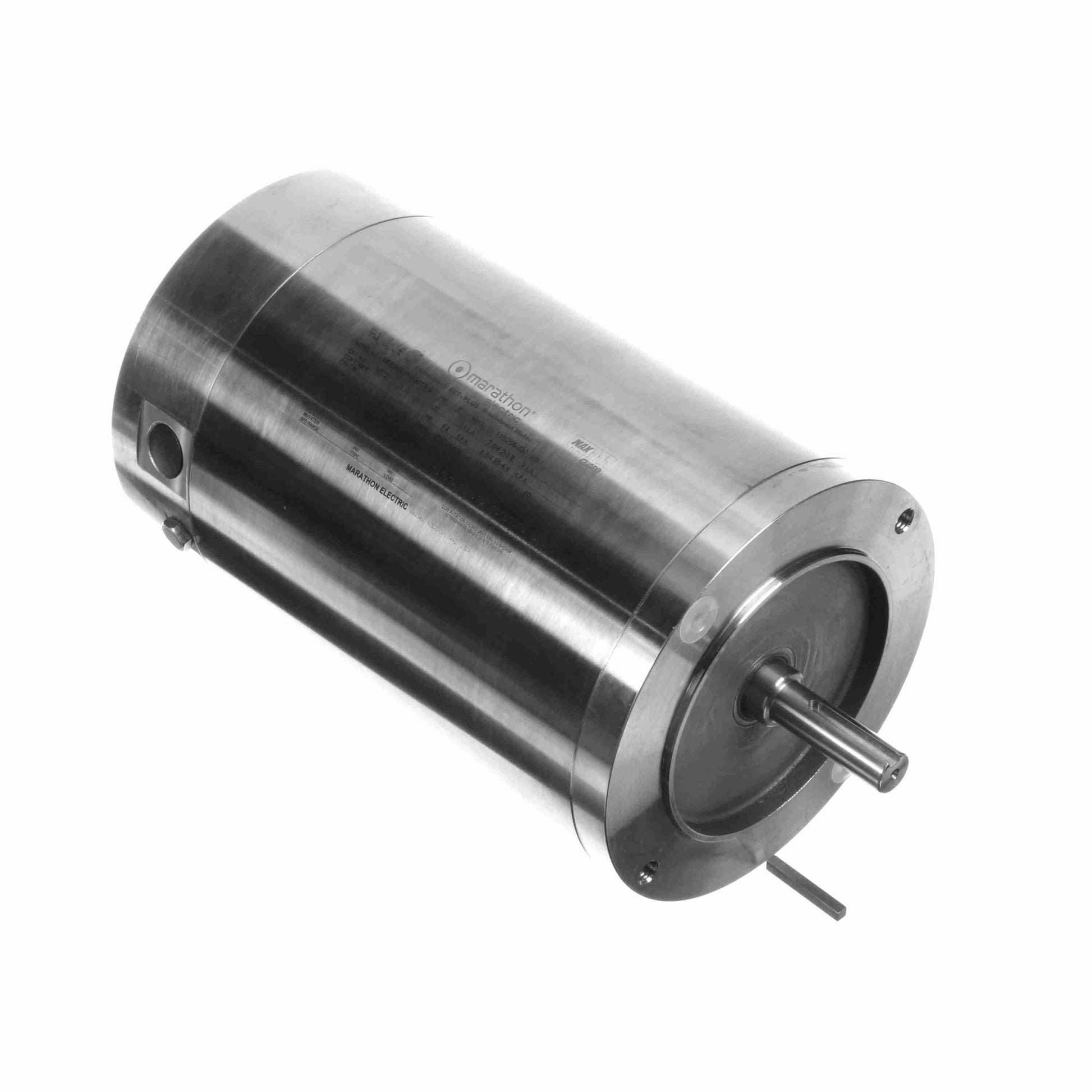

Marathon Electric N270, 1/3 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, Single Phase, Totally Enclosed, C-Face Footed, Stainless/BISSC, 56C17V5304.

N270, 1/3 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, Single Phase, Totally Enclosed, C-Face Footed, Stainless/BISSC, 56C17V5304.

Engineering Data

Output HP:0.33 Hp
Output KW:0.25 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:5.4/3.0-2.7 A
Speed:1725 rpm
Service Factor:1.15
Phase:1
Efficiency:72 %Power Factor:60
Duty:Continous
Insulation Class:F
Design Code:L
KVA Code:M
Frame:56C
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Capacitor Start Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:11.70 in
Frame Length:7.00 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
Assembly/Box Mounting:F1 ONLY
