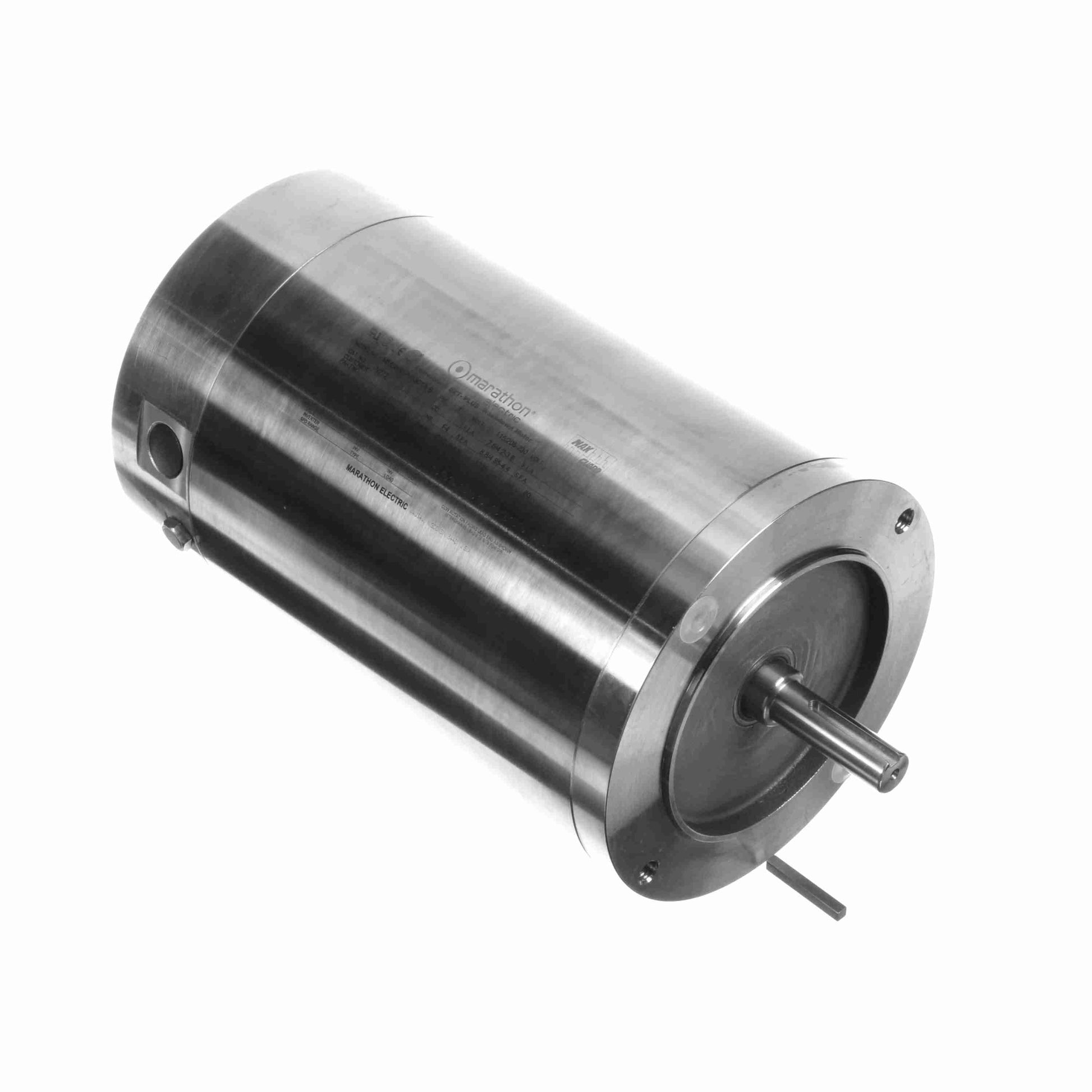

Marathon Electric N275, 2 Hp, 1800 Rpm, 145TC FR, 115/208-230 Vac, Single Phase, Totally Enclosed, C-Face Footed, Stainless/BISSC, 145TBWD5326

N275, 2 Hp, 1800 Rpm, 145TC FR, 115/208-230 Vac, Single Phase, Totally Enclosed, C-Face Footed, Stainless/BISSC, 145TBWD5326

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:20.0/10.2-10.0 A
Speed:1740 rpm
Service Factor:1.15
Phase:1
Efficiency:80 %
Power Factor:80
Duty:Continous
Insulation Class:F
Design Code:L
KVA Code:J
Frame:145T
CEnclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:14.87 in
Frame Length:9.50 in
Shaft Diameter:0.875 in
Shaft Extension:2.12 in
Assembly/Box Mounting:F1 ONLY
