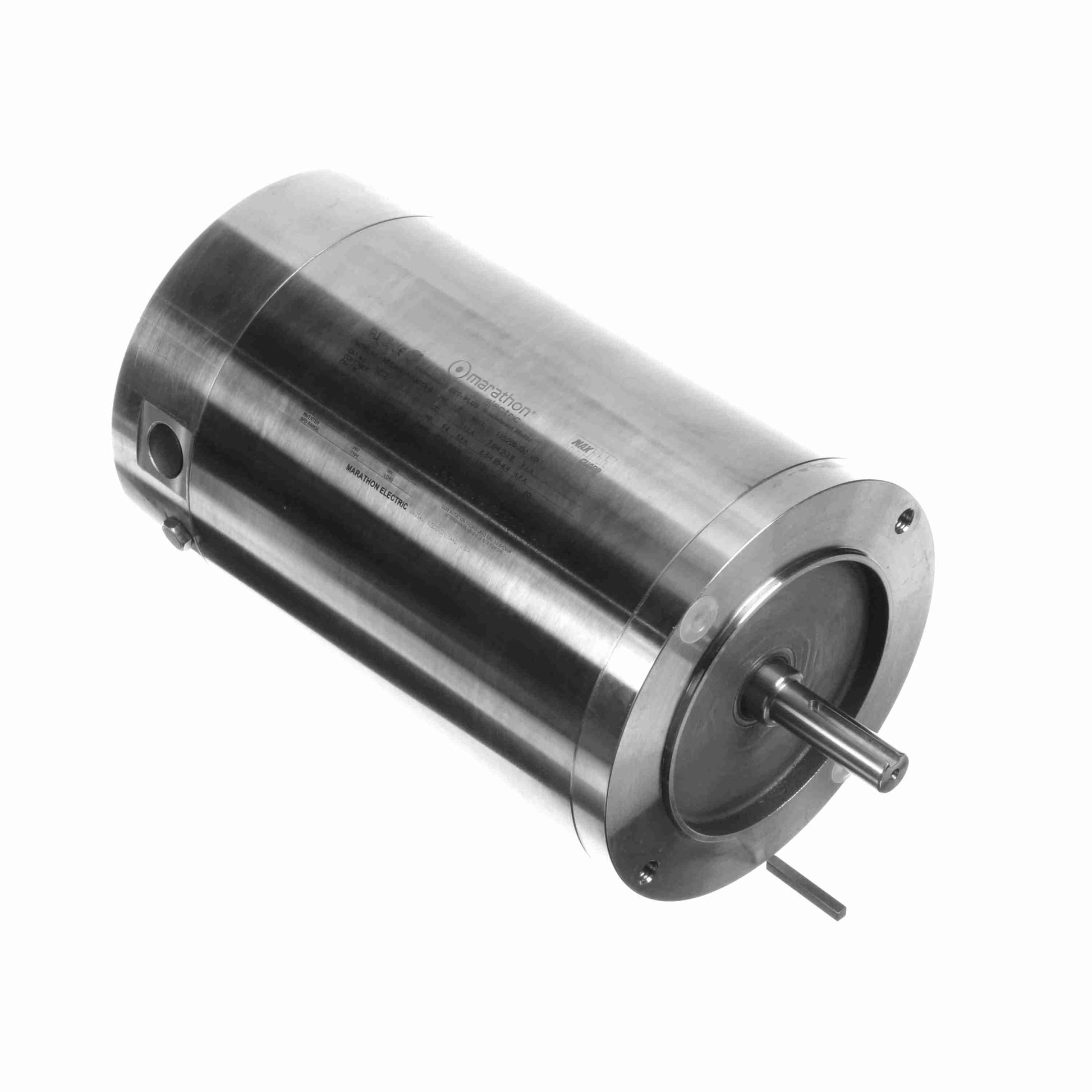

Marathon Electric N285, 1 Hp, 1800 Rpm, 56HC FR, 115/208-230 Vac, Single Phase, Totally Enclosed, C-Face Footed, Stainless/BISSC, 56B17V5304.

N285, 1 Hp, 1800 Rpm, 56HC FR, 115/208-230 Vac, Single Phase, Totally Enclosed, C-Face Footed, Stainless/BISSC, 56B17V5304.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:9.0/5.0-4.5 A
Speed:1725 rpm
Service Factor:1.15
Phase:1
Efficiency:82.5 %
Power Factor:88
Duty:Continous
Insulation Class:F
Design Code:N
KVA Code:K
Frame:56HC
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:NEMA 56
Overall Length:13.70 in
Frame Length:9.00 in
Shaft Diameter:0.625 in
Shaft Extension:1.94 in
Assembly/Box Mounting:F1 ONLY
